DUMP TRAILERS

Built to Haul, Designed to Last

X-on Dump Trailers are engineered for a range of professional uses—from landscaping to demolition and bulk material transport. Our line-up includes a variety of models with different capacities and features to match the demands of your job. Whether you're looking for compact power or maximum load capacity, we’ve got the model for you. Explore the D Series, designed to handle everything from everyday hauling to the most challenging jobs.

THE x-on DUMP LINE-UP

From compact models to heavy-duty giants, our dump trailer line-up is designed to meet the diverse needs of our customers. Each model combines advanced engineering with practical features, ensuring you have the perfect tool for every job.

D1

D2

D3

D4

D5

D6

Dd

DT

From Job Site to Off-Road, X-On Delivers.

See What We’re Made Of

Made in Texas

We don’t outsource toughness. Built right here in America.

No-Fluff Frames

Welded tough. No gimmicks. Just raw strength where it counts.

Built with Purpose

Every trailer’s made to pull its weight, and then some.

Powder-Coated & Ready

Real-world durability, not just showroom shine.

Detailed Specifications for each model

Find the Perfect Fit for Your Needs

Explore detailed specs and capabilities for each model in the Delco Dump Trailer line-up. From compact, single-axle trailers like the D1 to the heavy-duty, tandem dual DD, every trailer is built to perform.

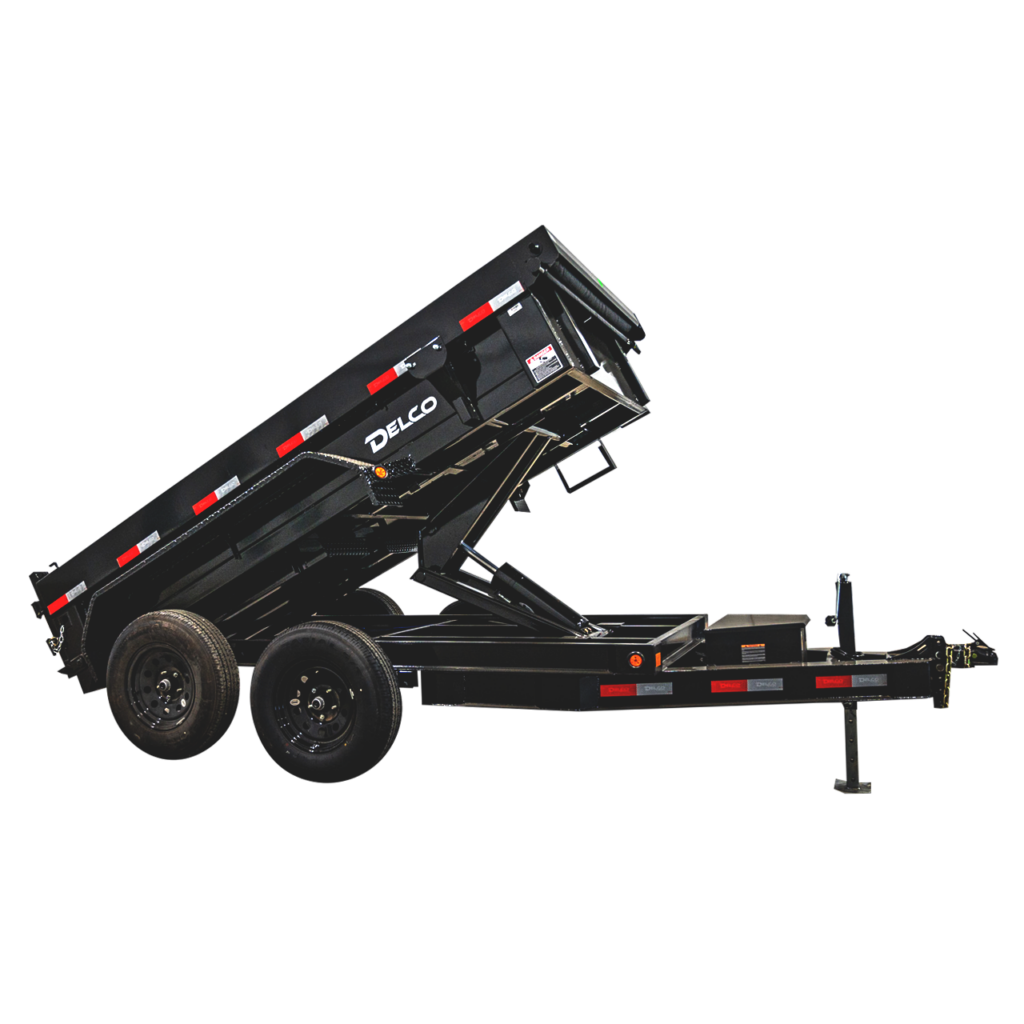

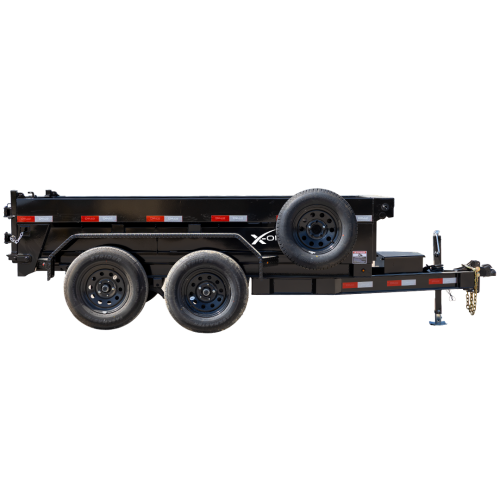

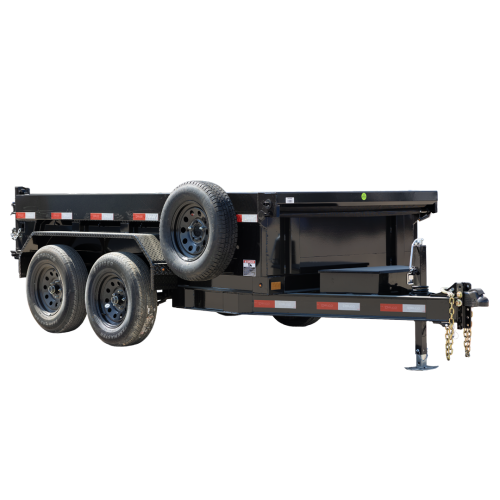

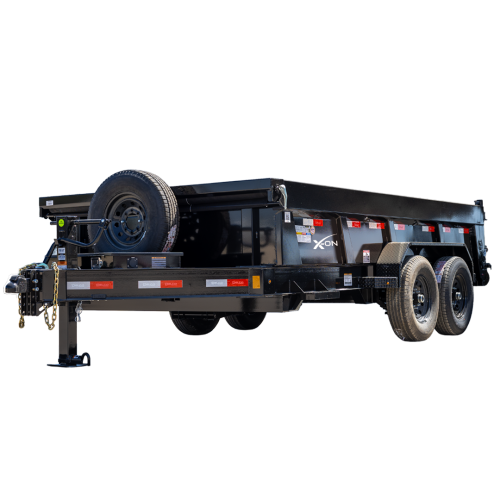

D1

7K Bumper Pull Dump

GVWR
FRAME
HITCH
AXLES
BACK
COLOR
JACK
SIDE
FLOOR
RAMPS
TARP KIT
TIRES
SPARE
WHEEL

14,000 LBS
6" Channel Frame and 6" I-Beam Tongue
2 5/16 Ajustable Coupler BUMPER PULL
500 lb Electric Spring x 1
3-Way Spreader Gate W/ Slide-in Ramps
Midnight Black (PBS9-00005)
7K Dropleg
18" Solid Sides
10 Gauge Floor and Sides
6' Slide-in Rear Ramps
Pull Back Tarp System
10 Ply 225/75R15 LRD Tires
No Spare Tire
Black Wheels

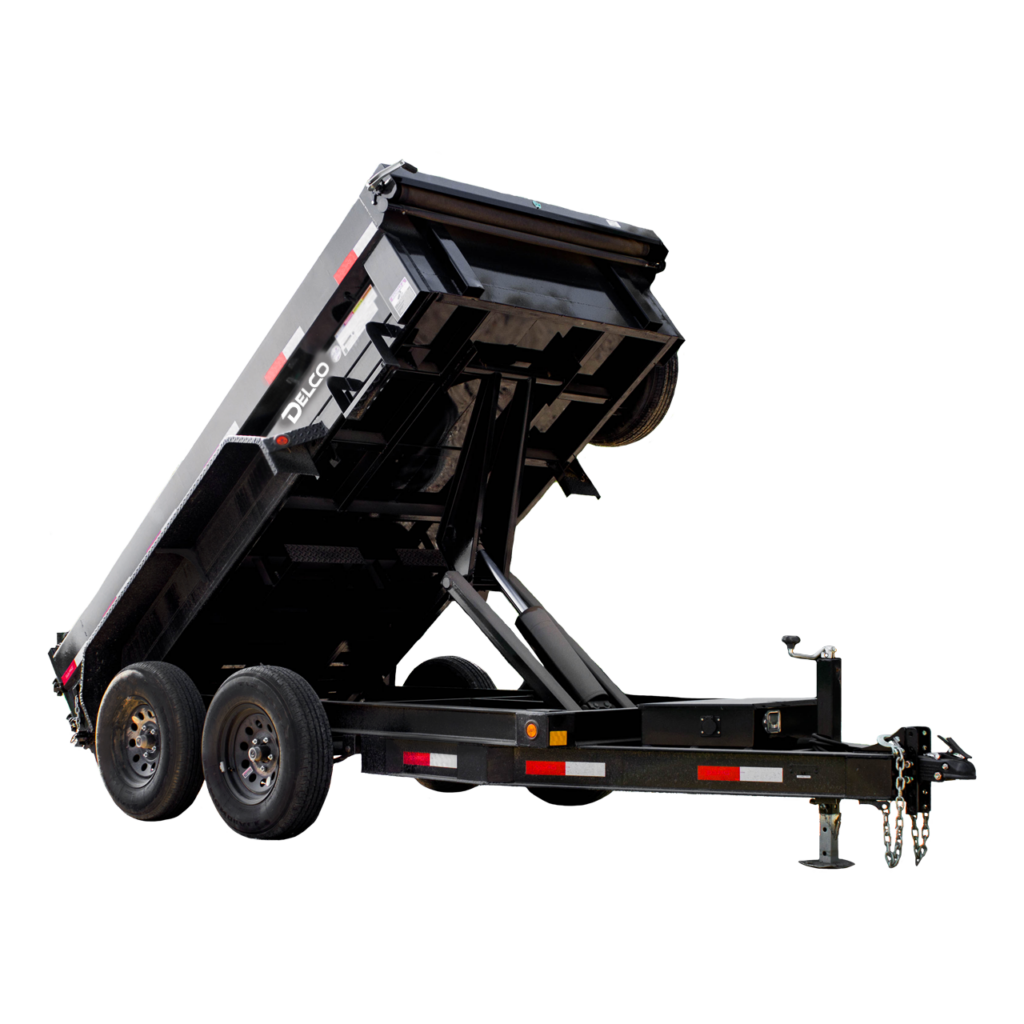

D2

12k Bumper Pull Dump

GVWR
FRAME
HITCH
AXLES
BACK
COLOR
JACK
SIDE
FLOOR
RAMPS
TARP KIT
TIRES
SPARE
WHEEL

14,000 LBS
6” I-Beam Frame and Tongue
2 5/16 Ajustable Bumperpull Coupler
6K LB. Spring x 2
3-Way Spreader Gate W/ Slide-in Ramps
Midnight Black (PBS9-00005)
7K Dropleg
21" Solid Sides
10 Gauge Floor and Sides
6' Slide-in Rear Ramps
Pull Back Tarp System
235/80R16 LRE Radial 10ply Tires
No Spare Tire
Black Wheels

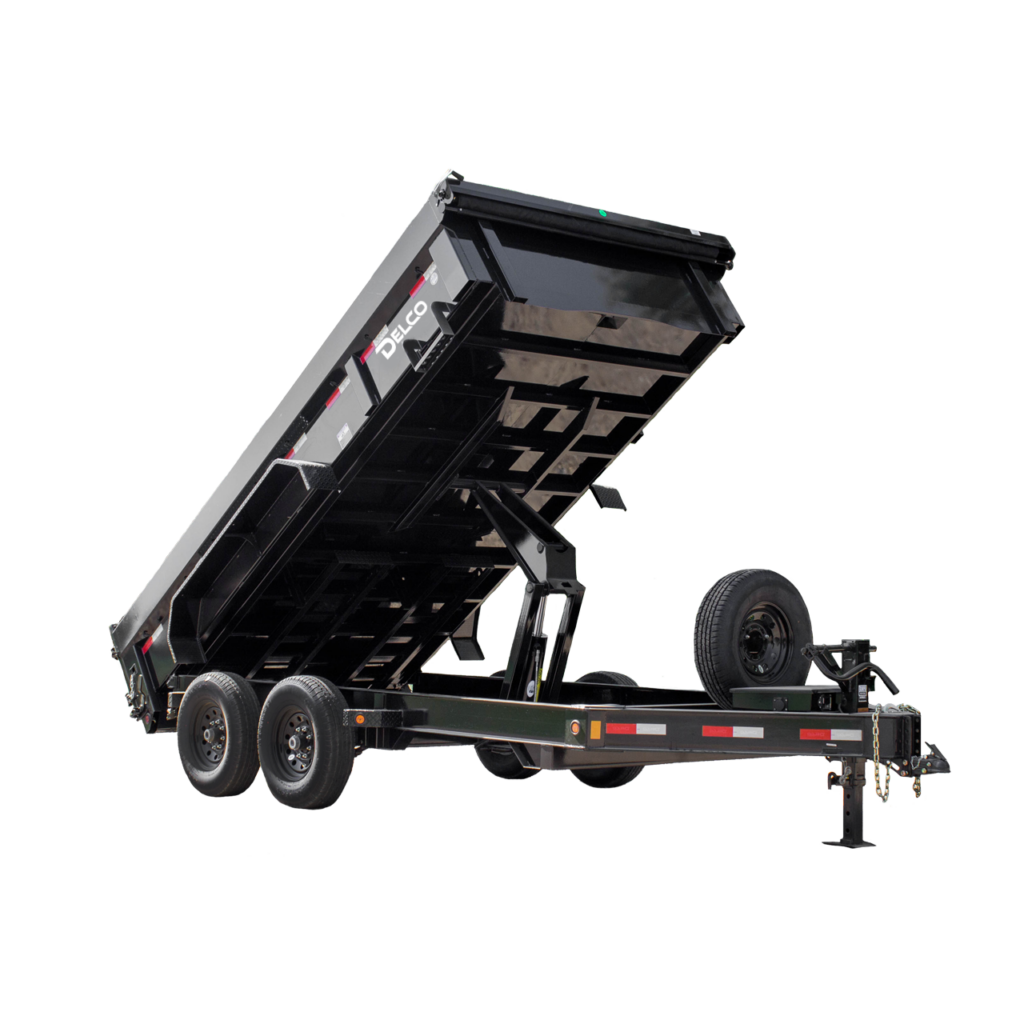

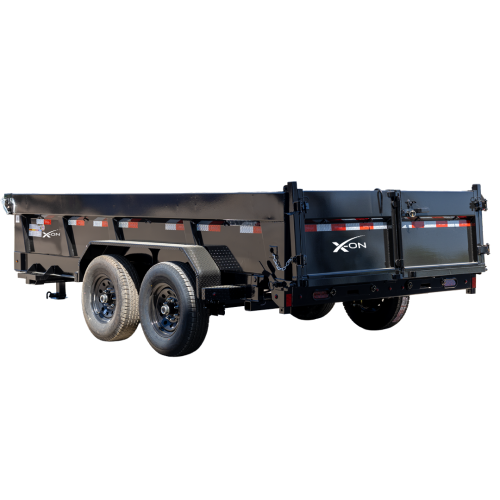

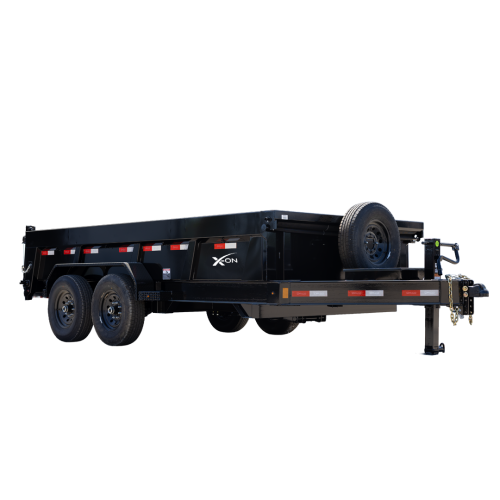

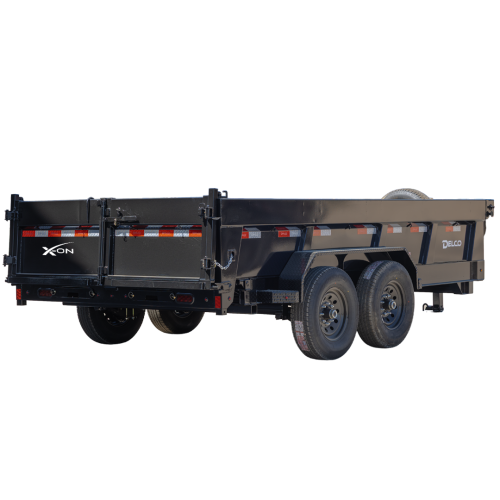

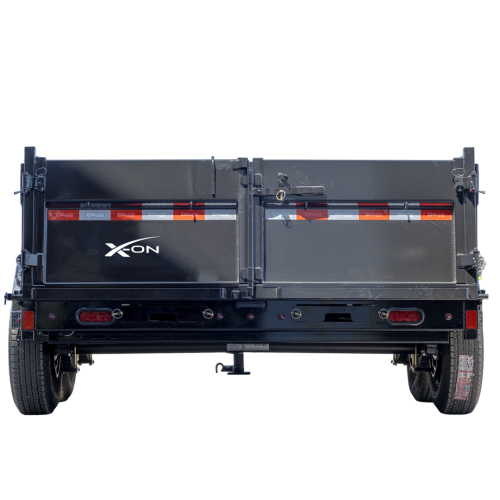

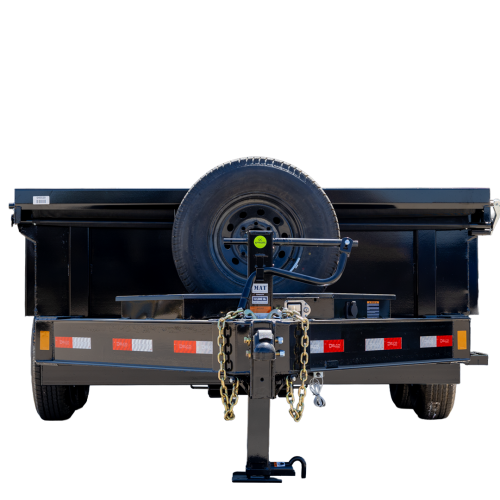

D3

14/16K Bumper Pull Dump

GVWR
FRAME
HITCH
AXLES
BACK
COLOR
JACK
SIDE
FLOOR
RAMPS
TARP KIT
TIRES
SPARE
WHEEL

14,000 -16,000 LBS.
8" I-Beam Frame and Tongue
2 5/16 Ajustable Bumperpull Coupler
7K lb Spring x 2
3-Way Spreader Gate W/ Slide-in Ramps
Midnight Black (PBS9-00005)
12K LB. Spring loaded (Single)
2 FT. Solid Sides
10 Gauge Floor and Sides
6' Slide-in Rear Ramps
Pull Back Tarp System
235/80R16 LRE Radial 10ply Tires
No Spare Tire
Black Wheels

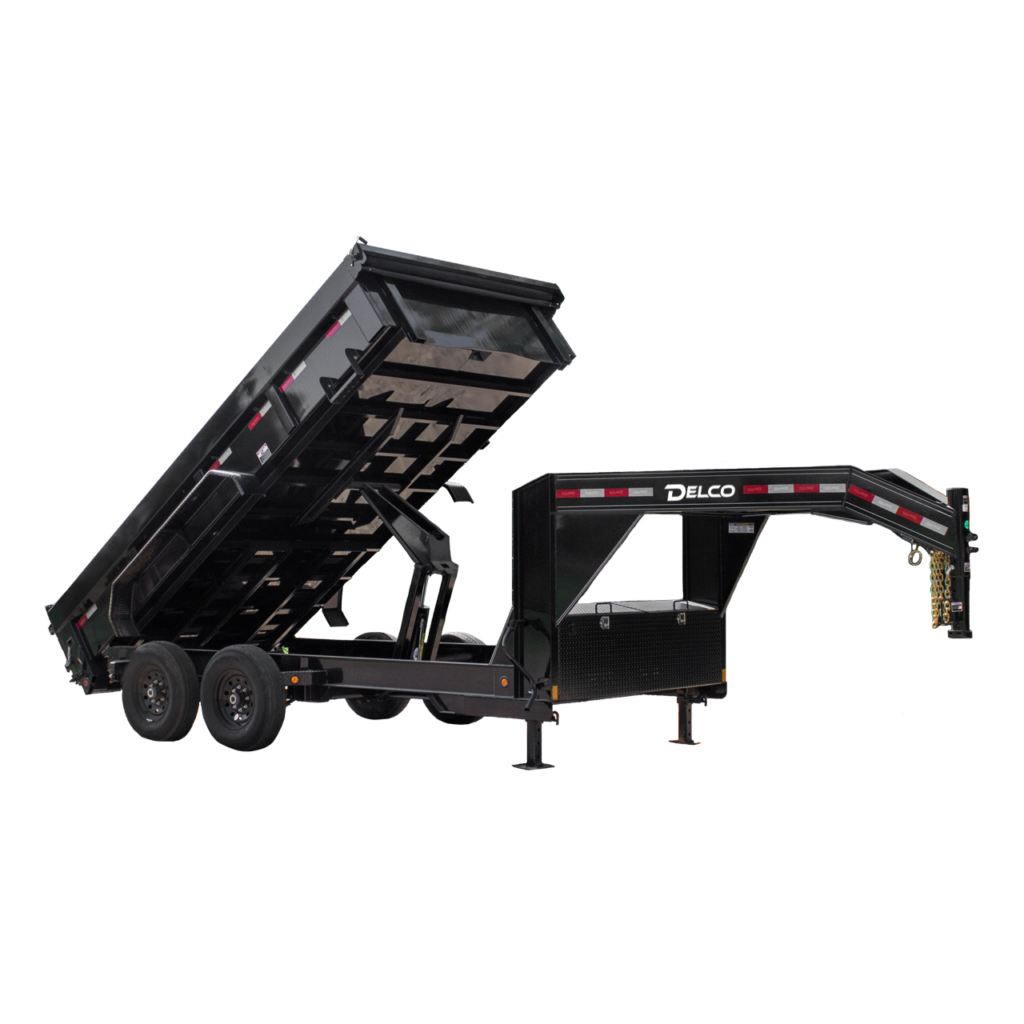

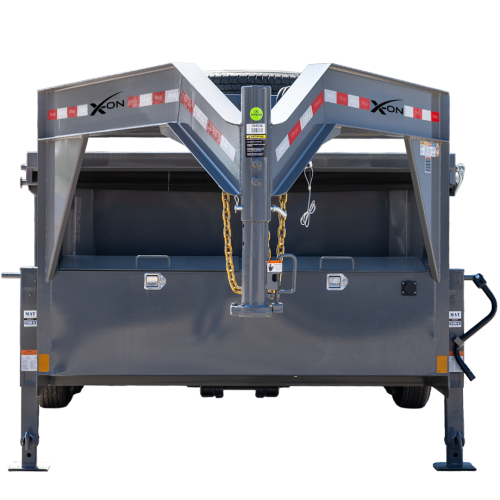

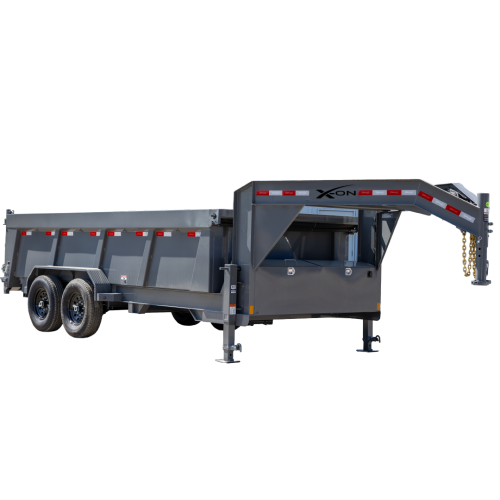

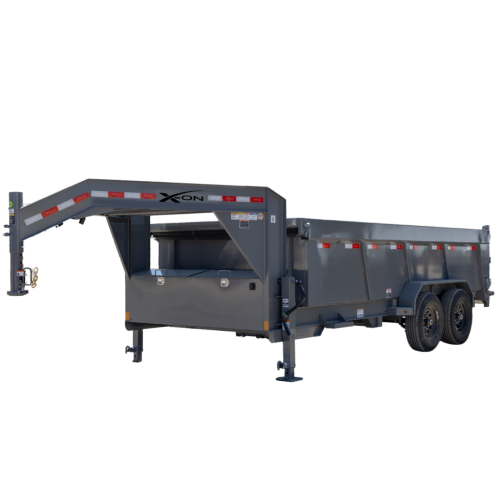

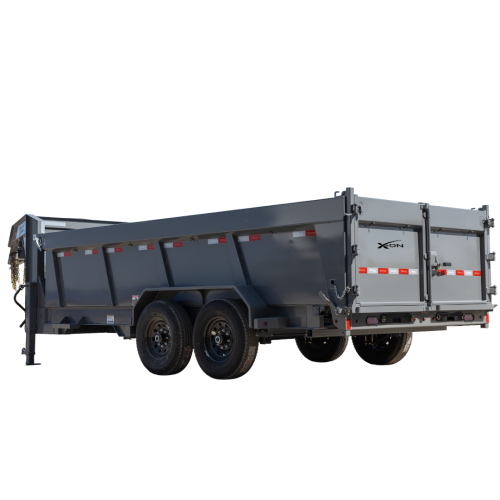

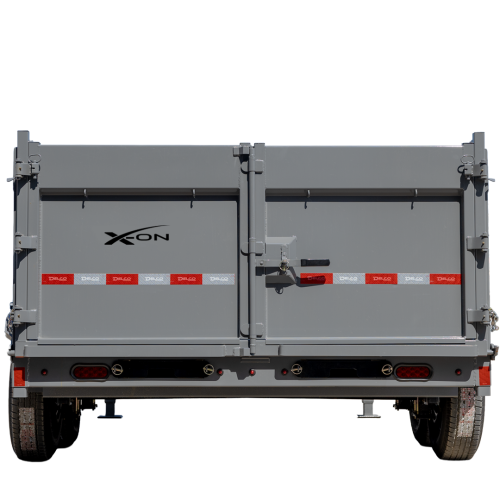

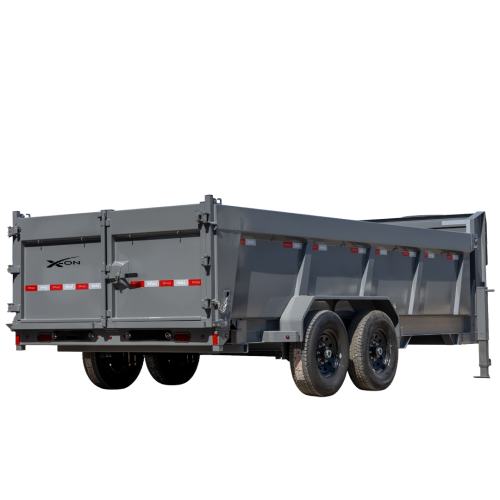

D4

14/16K gooseneck Dump

GVWR
FRAME
HITCH
AXLES
BACK
COLOR
JACK
SIDE
FLOOR
RAMPS
TARP KIT
TIRES
SPARE
WHEEL

14,000-16,000 LBS.
8" I-Beam Frame and 10" I-Beam Neck
2 5/16" 25K Round Gooseneck Coupler
7K LB. Spring x 2
3-Way Spreader Gate W/ Slide-in Ramps
Midnight Black (PBS9-00005)
12K LB. Spring loaded (Single)
2 FT. Solid Sides
10 Gauge Floor and Sides
6' Slide-in Rear Ramps
Pull Back Tarp System
235/80R16 LRE Radial 10ply Tires
Spare Tire Included
Black Wheels

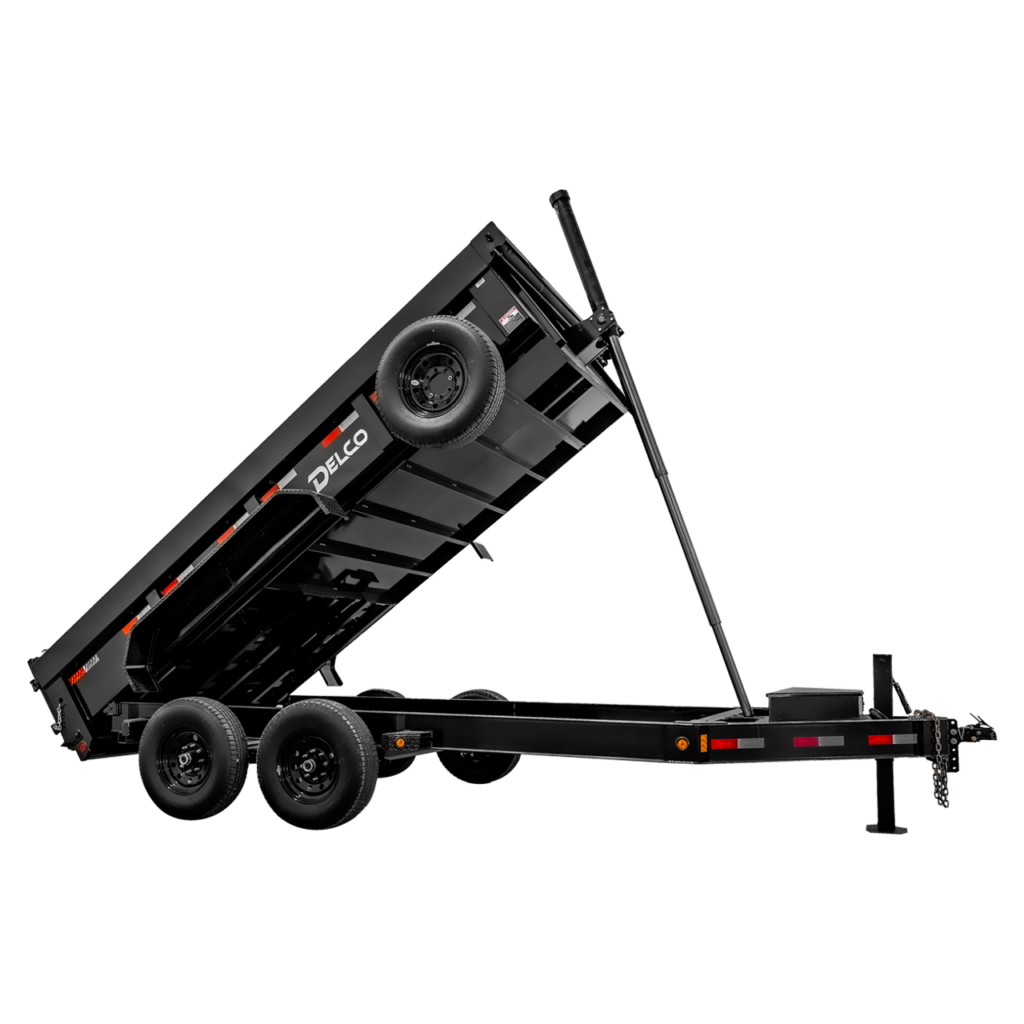

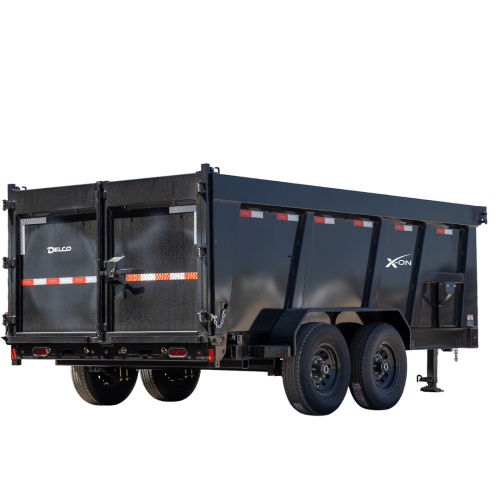

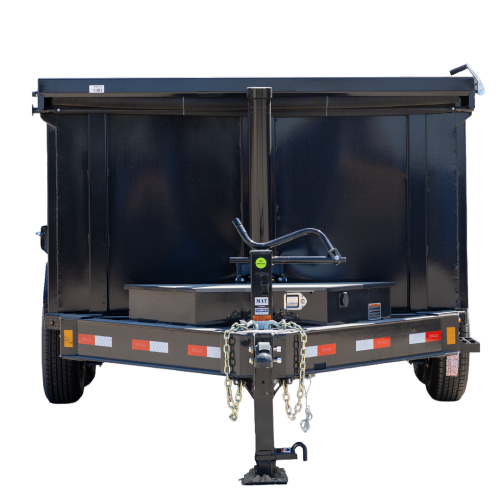

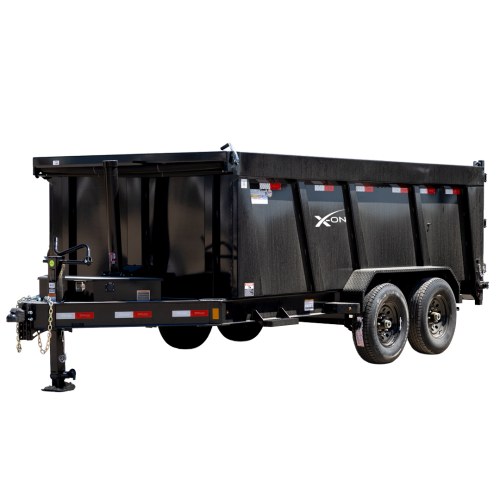

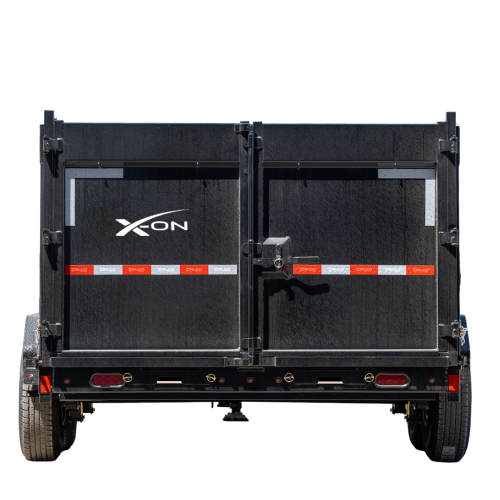

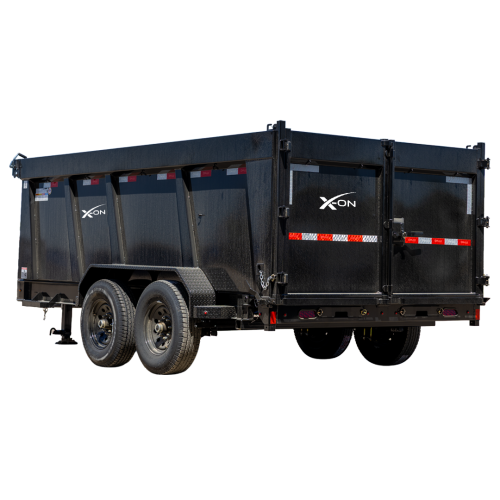

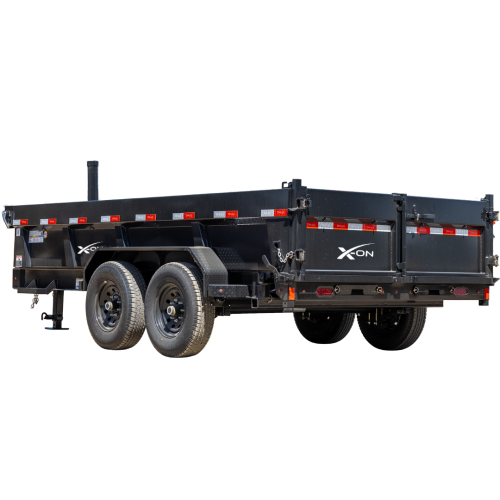

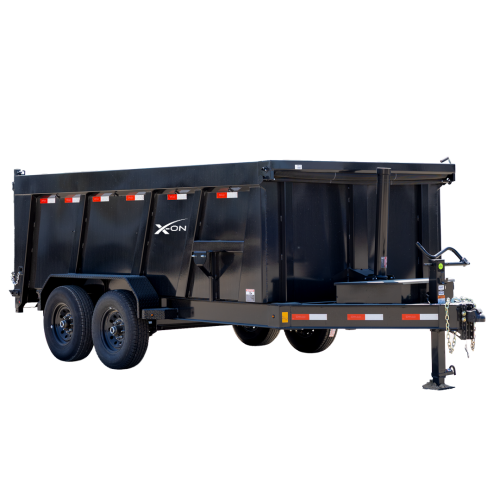

D5

14k BUMPERPULL TELESCOPIC

GVWR
FRAME
HITCH
AXLES
BACK
COLOR
JACK
SIDE
FLOOR
RAMPS
TARP KIT
TIRES
SPARE
WHEEL

14,000 LBS
8" I-Beam Frame and Tongue
2 5/16 Ajustable Bumperpull Coupler
8K LB. Spring *16 Ply Tires Required* x 2
3-Way Spreader Gate W/ Slide-in Ramps
Midnight Black (PBS9-00005)
12K LB. Spring loaded (Single)
2 FT. Soild Sides
10 Gauge Floor and Sides
6' Slide-in Rear Ramps
Pull Back Tarp System
ST235/85R16 LRG Radial 14ply Tires
No Spare Tire
Black Wheels

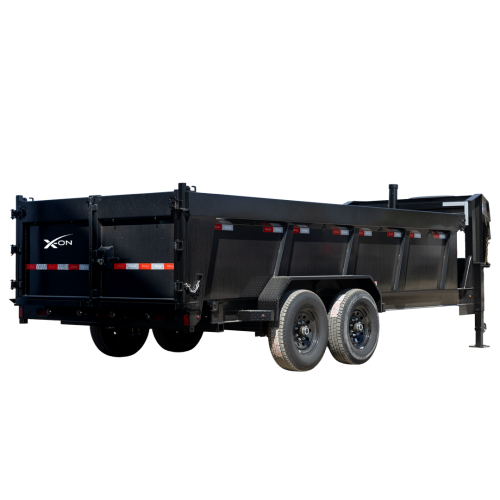

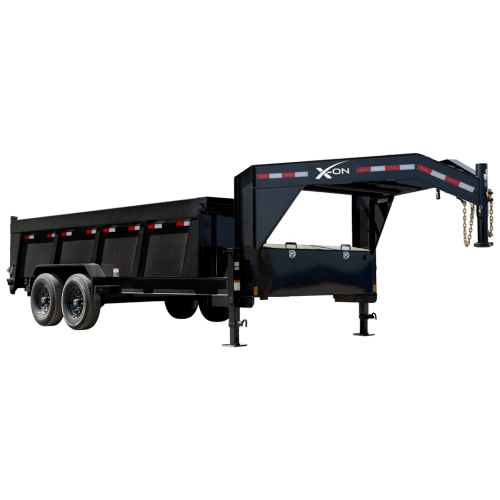

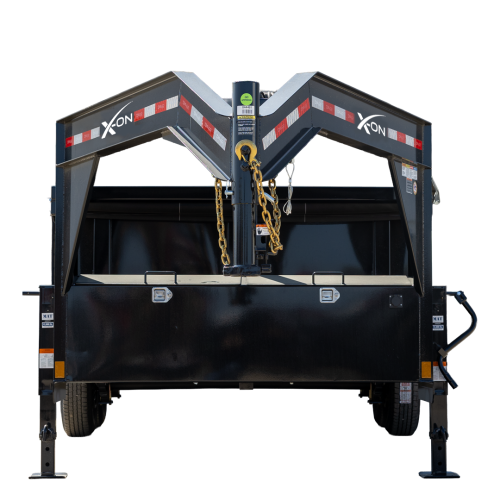

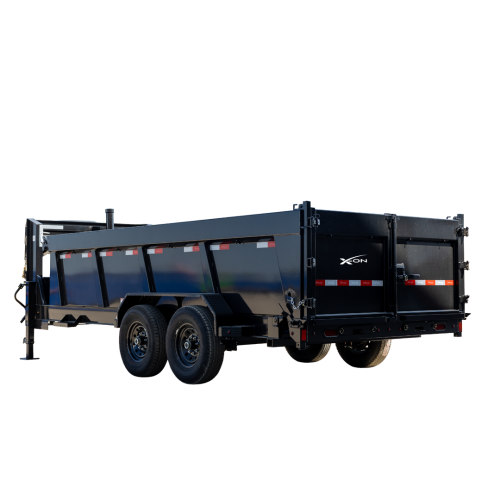

D6

14k gooseneck TELESCOPIC

GVWR
FRAME
HITCH
AXLES
BACK
COLOR
JACK
SIDE
FLOOR
RAMPS
TARP KIT
TIRES
SPARE
WHEEL

14,000 LBS
8" I-Beam Frame and 10" I-Beam Neck
2 5/16" 25K Round Gooseneck Coupler
8K LB. Spring *16 Ply Tires Required* x 2
3-Way Spreader Gate W/ Slide-in Ramps
Midnight Black (PBS9-00005)
12K LB. Spring loaded (Single)
2FT. Solid Sides
10 Gauge Floor and Sides
6' Slide-in Rear Ramps
Pull Back Tarp System
ST235/85R16 LRG Radial 14ply Tires
Spare Tire Included
Black Wheels

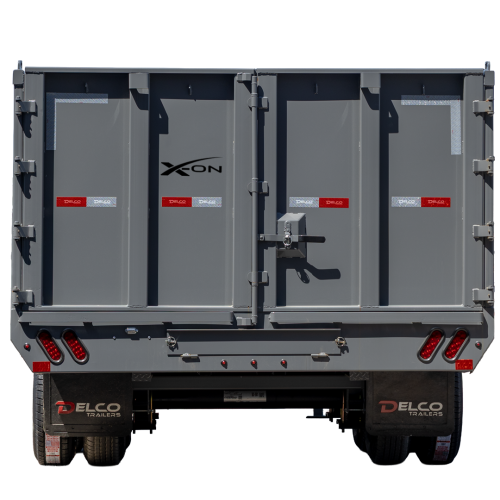

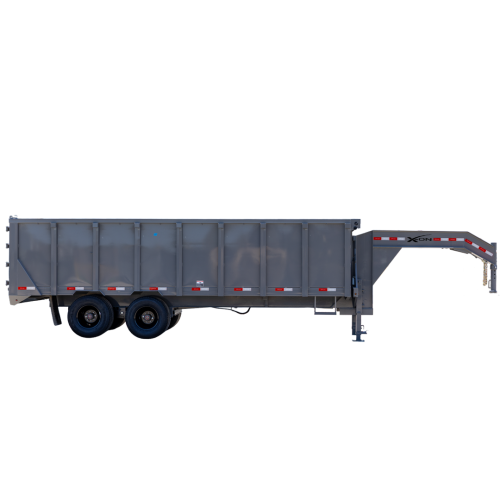

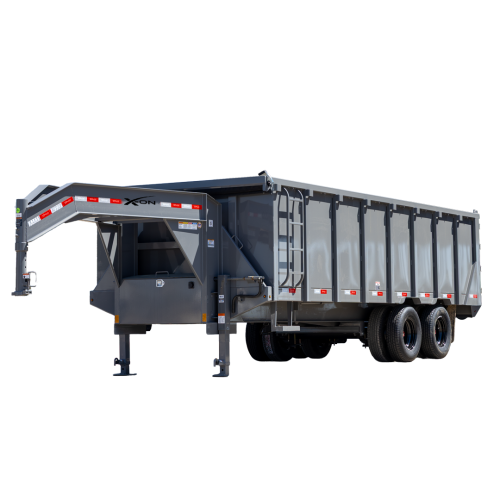

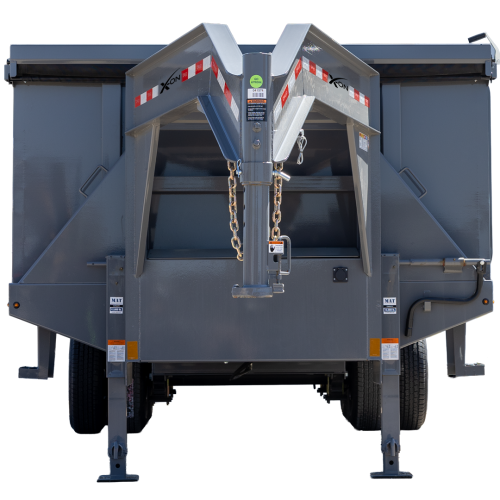

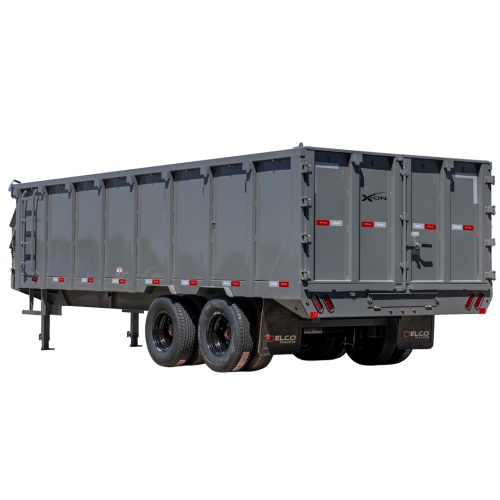

Dd

TANDEM DUAL DUMP

GVWR
FRAME
HITCH
AXLES
BACK
COLOR
JACK
SIDE
FLOOR
RAMPS
TARP KIT
TIRES
SPARE
WHEEL

21,000 LBS
12" 19 LB. I-Beam Frame and Neck
3" I-Beam on 12" Centers (per foot)
2 5/16" 25K Round Gooseneck Coupler
10K Electric Dual tandem x 2
3-Way Spreader Gate W/ Slide-in Ramps
Midnight Black (PBS9-00005)
Jack, 12K lb Spring loaded (Single)
4 FT. Solid Sides
10 Gauge Floor and Sides
6' Slide-in Rear Ramps
Pull Back Tarp System
235/80R16 LRE Radial 10ply Tires
Spare Tire Included
Black Wheels

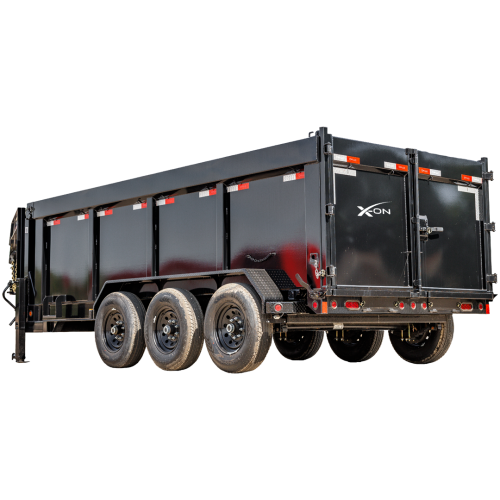

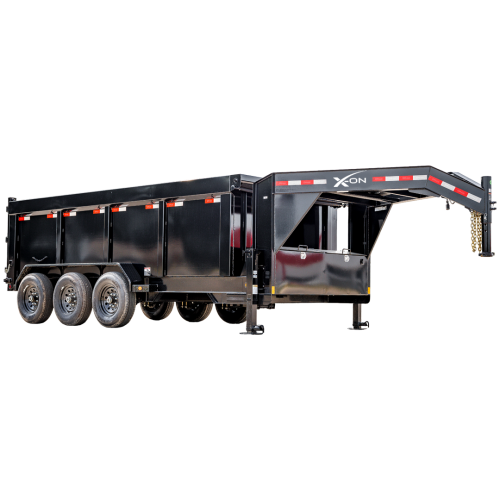

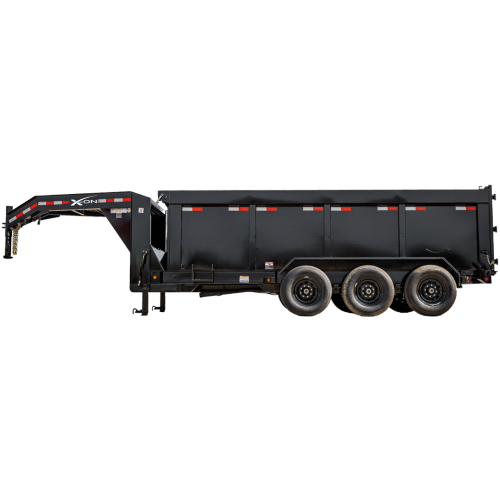

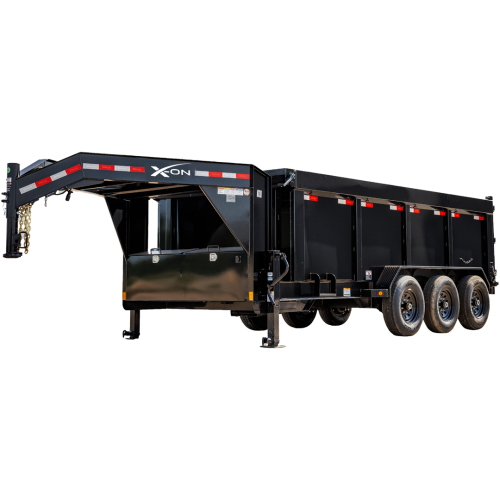

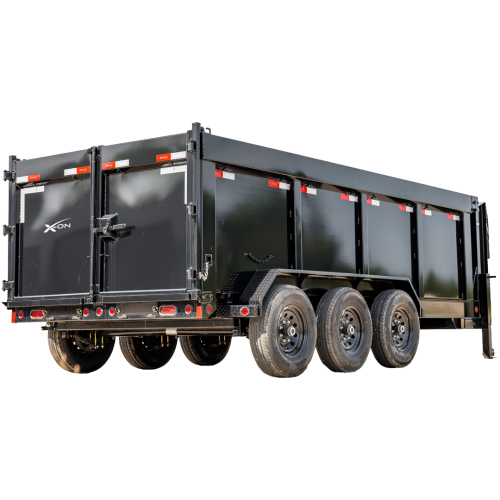

Dt

21K GOOSENECK DUMP

GVWR
FRAME
HITCH
AXLES
BACK
COLOR
JACK
SIDE
FLOOR
RAMPS
TARP KIT
TIRES
SPARE
WHEEL

21,000 LBS
8" I-Beam Frame and 10" I-Beam Neck
2 5/16" 25K Round Gooseneck Coupler
7K lb Spring x 3
3-Way Spreader Gate W/ Slide-in Ramps
Midnight Black (PBS9-00005)
Jack, 12K lb Spring loaded (Single)
2 FT. Solid Sides
10 Gauge Floor and Sides
6' Slide-in Rear Ramps
Pull Back Tarp System
235/80R16 LRE Radial 10ply Tires
Spare Tire Included
Black Wheels

Get Your Hands on an X-On

Built Tough. Ready for Anything.

The best way to see what we’re about? Get up close with an X-On trailer. Find a dealer near you, talk to someone who gets it, and pick out the rig that fits your lifestyle.
