Flatbed & Deckover Trailers
Open Deck. No Limits.
When the load doesn't fit in a box and the job doesn't fit a standard spec, you need a flatbed you can trust. X-On flatbeds and deckovers are engineered for the operators who haul serious equipment, pipe, lumber, and industrial freight — the kind of loads where an underbuilt trailer isn't just inconvenient, it's a liability. Built from high-strength American steel with frame depth and axle ratings to match, the X-On flatbed lineup covers everything from compact bumper pull deckovers to 30K dual tandem goosenecks stretching out to 44'. Whatever you're pulling, however far you're going — there's a trailer in this lineup built for it.
THE x-on Flatbed & Deckover LINE-UP
From compact models to heavy-duty giants, our dump trailer line-up is designed to meet the diverse needs of our customers. Each model combines advanced engineering with practical features, ensuring you have the perfect tool for every job.
What's Under Every X-On
The Build Quality Behind the Brand.
Every X-On trailer is engineered from the frame up with the materials, components, and construction standards that hold up under real-world commercial and industrial use, day after day, load after load.
Industrial-Grade Powder Coat
Our powder coat finish isn't applied over bare steel — it goes on after a full clean and prime process that creates a bond built to resist rust, chips, UV fade, and the daily abuse of job site environments. The finish you see on day one is still the finish you'll see years down the road. Real-world durability, not showroom shine.
A Length for Every Load.
From compact 14' bumper pull deckovers to 44' dual tandem goosenecks, X-On covers more length options than any other trailer in its class — so you can spec the right deck for the job without compromising.
American Steel. Every Model.
Every flatbed and deckover in the X-On lineup is built from high-strength American steel — welded tough, powder-coated, and engineered to hold up under real-world commercial and industrial use from day one.
Detailed Specifications for each model
From compact models to heavy-duty giants, our trailer line-up is designed to meet the diverse needs of our customers. Each model combines advanced engineering with practical features, ensuring you have the perfect tool for every job.

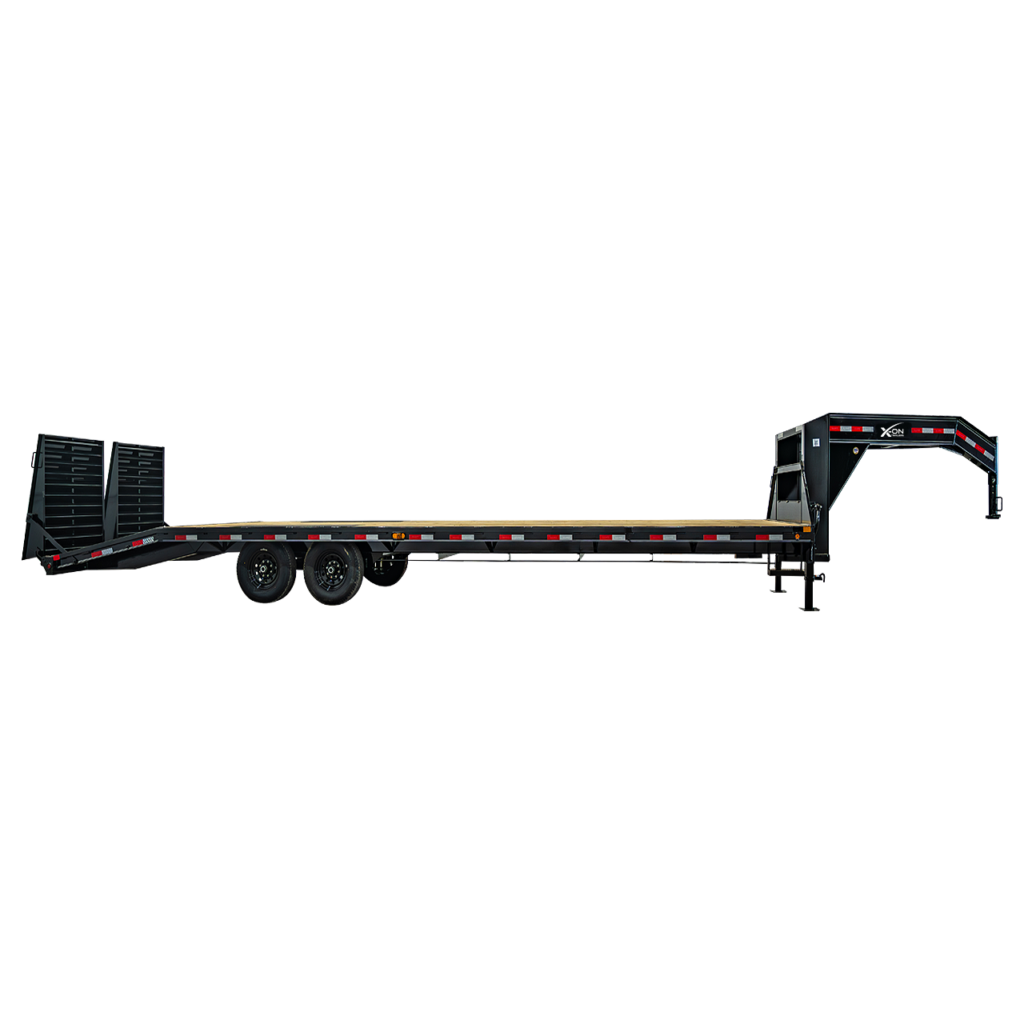

F1
14K Gooseneck Flatbed
F120 Specifications
| Specification | Detail |
|---|---|
| Model | F120 |
| MSRP | $12,114.20 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F122 Specifications
| Specification | Detail |
|---|---|
| Model | F122 |
| MSRP | $12,376.00 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F125 Specifications
| Specification | Detail |
|---|---|
| Model | F125 |
| MSRP | $12,667.20 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F126 Specifications
| Specification | Detail |
|---|---|
| Model | F126 |
| MSRP | $12,972.40 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F128 Specifications
| Specification | Detail |
|---|---|
| Model | F128 |
| MSRP | $13,279.00 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
F130 Specifications
| Specification | Detail |
|---|---|
| Model | F130 |
| MSRP | $13,584.20 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F132 Specifications
| Specification | Detail |
|---|---|
| Model | F132 |
| MSRP | $13,890.80 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F134 Specifications
| Specification | Detail |
|---|---|
| Model | F134 |
| MSRP | $14,196.00 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F135 Specifications
| Specification | Detail |
|---|---|
| Model | F135 |
| MSRP | $14,501.20 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F136 Specifications
| Specification | Detail |
|---|---|
| Model | F136 |
| MSRP | $14,807.80 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F138 Specifications
| Specification | Detail |
|---|---|
| Model | F138 |
| MSRP | $15,113.00 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F140 Specifications
| Specification | Detail |
|---|---|
| Model | F140 |
| MSRP | $15,419.60 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F2
16K Gooseneck Flatbed
F216 Specifications
| Specification | Detail |
|---|---|
| Model | F216 |
| MSRP | $13,963.60 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 8K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 5 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F220 Specifications
| Specification | Detail |
|---|---|
| Model | F220 |
| MSRP | $14,225.40 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 8K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 5 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F222 Specifications
| Specification | Detail |
|---|---|
| Model | F222 |
| MSRP | $14,487.20 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 8K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 5 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F225 Specifications
| Specification | Detail |
|---|---|
| Model | F225 |
| MSRP | $14,749.00 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 8K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 5 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F226 Specifications
| Specification | Detail |
|---|---|
| Model | F226 |
| MSRP | $15,047.20 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 8K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 5 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F228 Specifications
| Specification | Detail |
|---|---|
| Model | F228 |
| MSRP | $15,346.80 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 8K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 7 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F230 Specifications
| Specification | Detail |
|---|---|
| Model | F230 |
| MSRP | $15,645.00 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 8K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 7 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F232 Specifications
| Specification | Detail |
|---|---|
| Model | F232 |
| MSRP | $15,943.20 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 8K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 7 - ST235/85R16 LRG Radial 14ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F234 Specifications
| Specification | Detail |
|---|---|
| Model | F234 |
| MSRP | $16,241.40 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 8K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 7 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F235 Specifications
| Specification | Detail |
|---|---|
| Model | F235 |
| MSRP | $16,539.60 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 8K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 7 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F236 Specifications
| Specification | Detail |
|---|---|
| Model | F236 |
| MSRP | $16,839.20 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 8K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 7 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F238 Specifications
| Specification | Detail |
|---|---|
| Model | F238 |
| MSRP | $17,137.40 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 8K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 7 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F240 Specifications
| Specification | Detail |
|---|---|
| Model | F240 |
| MSRP | $17,435.60 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 8K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 7 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F3
20K Gooseneck Flatbed
F325 Specifications
| Specification | Detail |
|---|---|
| Model | F325 |
| MSRP | $15,577.80 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (85-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 5 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F326 Specifications
| Specification | Detail |
|---|---|
| Model | F326 |
| MSRP | $15,853.60 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (85-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 5 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F328 Specifications
| Specification | Detail |
|---|---|
| Model | F328 |
| MSRP | $17,600.80 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (85-64) |
| Tire | 5 - 215/75R17.5 LRH Radial 16ply Tires |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F330 Specifications
| Specification | Detail |
|---|---|
| Model | F330 |
| MSRP | $17,602.20 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (85-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 5 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F332 Specifications
| Specification | Detail |
|---|---|
| Model | F332 |
| MSRP | $17,875.20 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (85-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 5 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F334 Specifications
| Specification | Detail |
|---|---|
| Model | F334 |
| MSRP | $18,425.40 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (85-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 5 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F335 Specifications
| Specification | Detail |
|---|---|
| Model | F335 |
| MSRP | $18,699.80 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (85-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 5 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F336 Specifications
| Specification | Detail |
|---|---|
| Model | F336 |
| MSRP | $18,974.20 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (85-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 5 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F338 Specifications
| Specification | Detail |
|---|---|
| Model | F338 |
| MSRP | $19,248.60 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (85-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 5 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F340 Specifications
| Specification | Detail |
|---|---|
| Model | F340 |
| MSRP | $19,523.00 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (85-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 5 - 235/75R17.5 LRI Radial 18ply Tire |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |

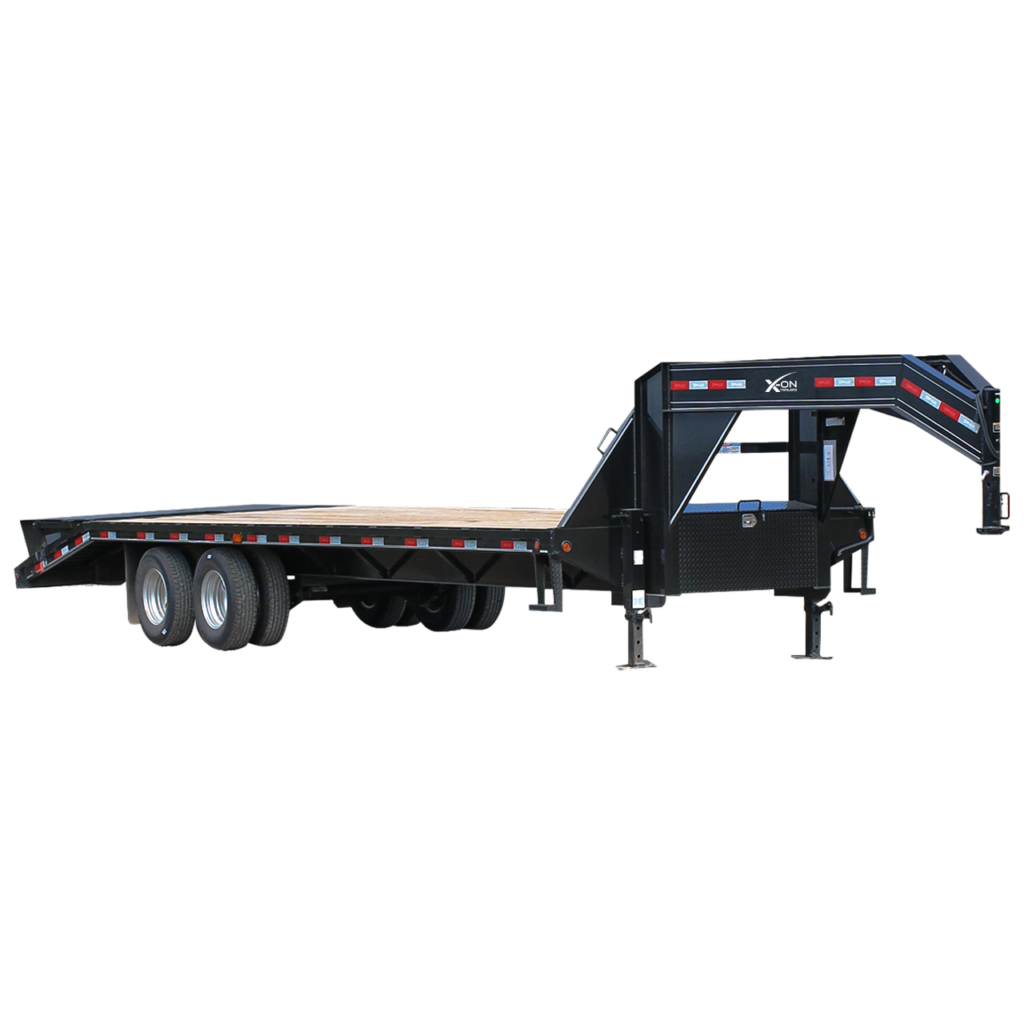

F5
30K Low-Pro Dual Tandem Flatbed
F520 Specifications
| Specification | Detail |
|---|---|
| Model | F520 |
| MSRP | $21,298.20 |
| Frame | 12" x 22 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 30K Gooseneck Coupler |
| Axles | Axle, (2) 15K Electric, Spring (75-44) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 9 - 215/75R17.5 LRH Radial 16ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F522 Specifications
| Specification | Detail |
|---|---|
| Model | F522 |
| MSRP | $21,365.40 |
| Frame | 12" x 22 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 30K Gooseneck Coupler |
| Axles | Axle, (2) 15K Electric, Spring (75-44) |
| Color | Midnight Black (PBS9-00005) |
| Tire | 9 - 215/75R17.5 LRH Radial 16ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F524 Specifications
| Specification | Detail |
|---|---|
| Model | F524 |
| MSRP | $21,700.00 |
| Frame | 12" x 22 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 30K Gooseneck Coupler |
| Axles | Axle, (2) 15K Electric, Spring (75-44) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 9 - 215/75R17.5 LRH Radial 16ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F525 Specifications
| Specification | Detail |
|---|---|
| Model | F525 |
| MSRP | $21,834.40 |
| Frame | 12" x 22 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 30K Gooseneck Coupler |
| Axles | Axle, (2) 15K Electric, Spring (75-44) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 9 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F526 Specifications
| Specification | Detail |
|---|---|
| Model | F526 |
| MSRP | $21,970.20 |
| Frame | 12" x 22 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 30K Gooseneck Coupler |
| Axles | Axle, (2) 15K Electric, Spring (75-44) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 9 - 215/75R17.5 LRH Radial 16ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F528 Specifications
| Specification | Detail |
|---|---|
| Model | F528 |
| MSRP | $22,236.20 |
| Frame | 12" x 22 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 30K Gooseneck Coupler |
| Axles | Axle, (2) 15K Electric, Spring (75-44) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 9 - 215/75R17.5 LRH Radial 16ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F530 Specifications
| Specification | Detail |
|---|---|
| Model | F530 |
| MSRP | $22,503.60 |
| Frame | 12" x 22 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 30K Gooseneck Coupler |
| Axles | Axle, (2) 15K Electric, Spring (75-44) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 9 - 215/75R17.5 LRH Radial 16ply Tires |
| Suspension | Standard Suspension |
| Tire | 9 - 215/75R17.5 LRH Radial 16ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Floor | Floor, Treated Pine Wood |
| Jack | Jack, (2) 12K Spring Loaded |
| Low-Profile | Low-Pro Option |
F532 Specifications
| Specification | Detail |
|---|---|
| Model | F532 |
| MSRP | $23,441.60 |
| Frame | 12" x 22 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 30K Gooseneck Coupler |
| Axles | Axle, (2) 15K Electric, Spring (75-44) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 9 - 215/75R17.5 LRH Radial 16ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F534 Specifications
| Specification | Detail |
|---|---|
| Model | F534 |
| MSRP | $23,709.00 |
| Frame | 12" x 22 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 30K Gooseneck Coupler |
| Axles | Axle, (2) 15K Electric, Spring (75-44) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 9 - 215/75R17.5 LRH Radial 16ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F535 Specifications
| Specification | Detail |
|---|---|
| Model | F535 |
| MSRP | $23,843.40 |
| Frame | 12" x 22 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 30K Gooseneck Coupler |
| Axles | Axle, (2) 15K Electric, Spring (75-44) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 9 - 215/75R17.5 LRH Radial 16ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F536 Specifications
| Specification | Detail |
|---|---|
| Model | F536 |
| MSRP | $24,045.00 |
| Frame | 12" x 22 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 30K Gooseneck Coupler |
| Axles | Axle, (2) 15K Electric, Spring (75-44) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 9 - 215/75R17.5 LRH Radial 16ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F538 Specifications
| Specification | Detail |
|---|---|
| Model | F538 |
| MSRP | $24,245.20 |
| Frame | 12" x 22 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 30K Gooseneck Coupler |
| Axles | Axle, (2) 15K Electric, Spring (75-44) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 9 - 215/75R17.5 LRH Radial 16ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F540 Specifications
| Specification | Detail |
|---|---|
| Model | F540 |
| MSRP | $24,579.80 |
| Frame | 12" x 22 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 30K Gooseneck Coupler |
| Axles | Axle, (2) 15K Electric, Spring (75-44) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 9 - 215/75R17.5 LRH Radial 16ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Low-Profile | Low-Pro Option |
F542 Specifications
| Specification | Detail |
|---|---|
| Model | F542 |
| MSRP | $25,183.20 |
| Frame | 12" x 22 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 30K Gooseneck Coupler |
| Axles | Axle, (2) 15K Electric, Spring (75-44) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 9 - 235/75R17.5 LRI Radial 18ply Tire |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Torque Tube | Torque Tube & Bridge Frame |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
F544 Specifications
| Specification | Detail |
|---|---|
| Model | F544 |
| MSRP | $25,785.20 |
| Frame | 12" x 22 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 30K Gooseneck Coupler |
| Axles | Axle, (2) 15K Electric, Spring (75-44) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 9 - 215/75R17.5 LRH Radial 16ply Tires |
| Tire | 9 - 235/75R17.5 LRI Radial 18ply Tire |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Torque Tube | Torque Tube & Bridge Frame |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |

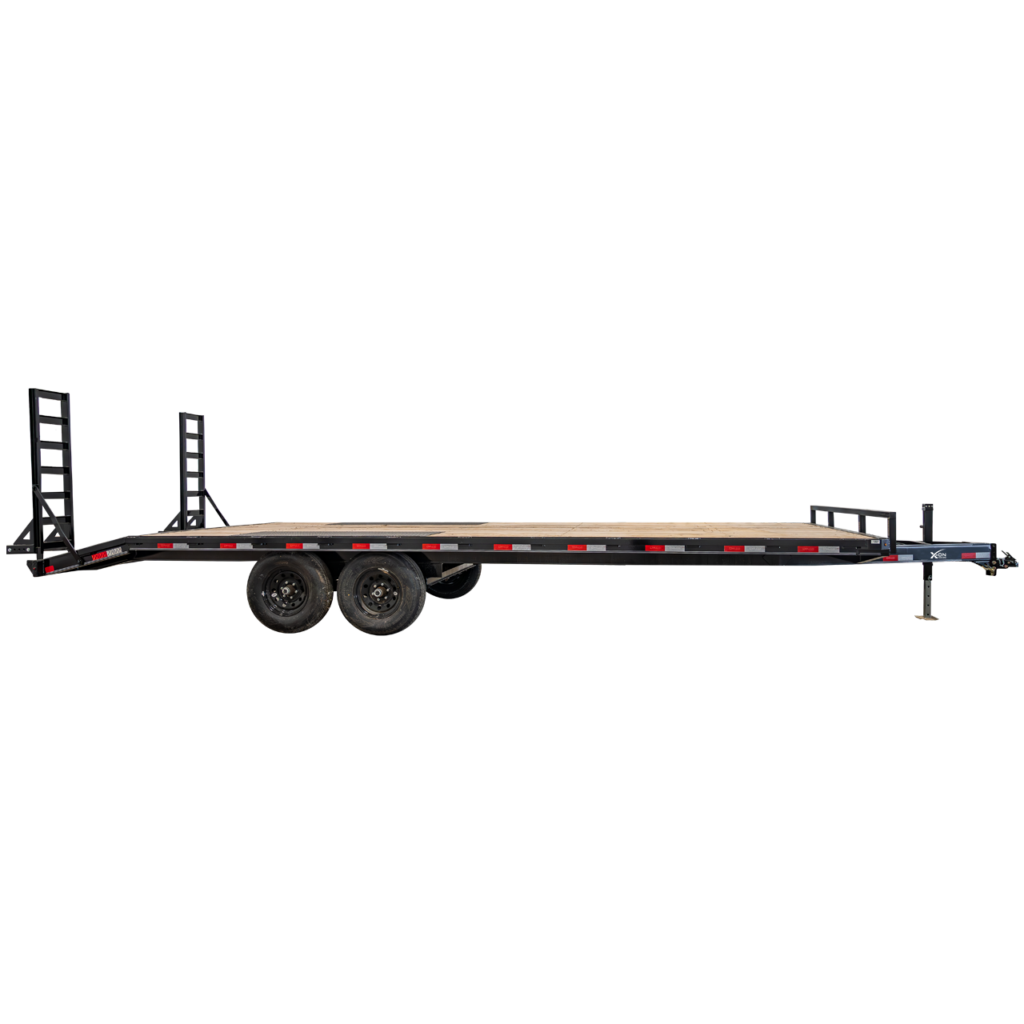

F6
Bumper Pull Deckover
F614 Specifications
| Specification | Detail |
|---|---|
| Model | F614 |
| MSRP | $8,706.60 |
| Frame | 6" Channel Frame & Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 6K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (1) 7K Drop-Leg |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |
F616 Specifications
| Specification | Detail |
|---|---|
| Model | F616 |
| MSRP | $8,911.00 |
| Frame | 6" Channel Frame & Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 6K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (1) 7K Drop-Leg |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |
F618 Specifications
| Specification | Detail |
|---|---|
| Model | F618 |
| MSRP | $9,186.80 |
| Frame | 6" Channel Frame & Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 6K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (1) 7K Drop-Leg |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |
F620 Specifications
| Specification | Detail |
|---|---|
| Model | F620 |
| MSRP | $9,464.00 |
| Frame | 6" Channel Frame & Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 6K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (1) 7K Drop-Leg |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |
F622 Specifications
| Specification | Detail |
|---|---|
| Model | F622 |
| MSRP | $9,900.80 |
| Frame | 6" Channel Frame & Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 6K Electric, Spring (81-64) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (DBS9-0UK12) |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (1) 7K Drop-Leg |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |
F624 Specifications
| Specification | Detail |
|---|---|
| Model | F624 |
| MSRP | $10,271.80 |
| Frame | 6" Channel Frame & Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 6K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (1) 7K Drop-Leg |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |

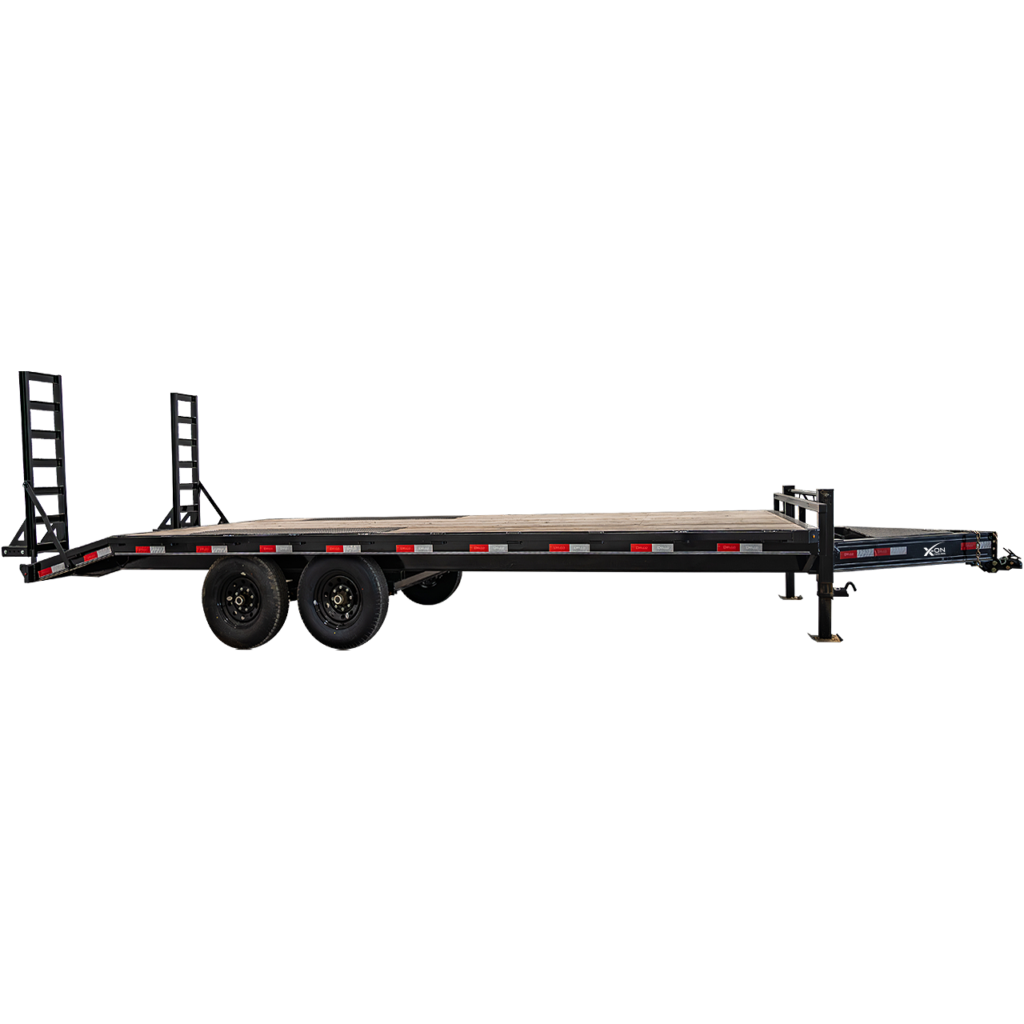

F8
Bumper Pull Deckover
F814 Specifications
| Specification | Detail |
|---|---|
| Model | F814 |
| MSRP | $9,231.60 |
| Frame | 8" x 13 lb I-Beam Frame & Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |
F816 Specifications
| Specification | Detail |
|---|---|
| Model | F816 |
| MSRP | $9,434.60 |
| Frame | 8" x 13 lb I-Beam Frame & Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |
F818 Specifications
| Specification | Detail |
|---|---|
| Model | F818 |
| MSRP | $9,696.40 |
| Frame | 8" x 13 lb I-Beam Frame & Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |
F820 Specifications
| Specification | Detail |
|---|---|
| Model | F820 |
| MSRP | $10,133.20 |
| Frame | 8" x 13 lb I-Beam Frame & Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |
F822 Specifications
| Specification | Detail |
|---|---|
| Model | F822 |
| MSRP | $10,570.00 |
| Frame | 8" x 13 lb I-Beam Frame & Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |
F824 Specifications
| Specification | Detail |
|---|---|
| Model | F824 |
| MSRP | $11,006.80 |
| Frame | 8" x 13 lb I-Beam Frame & Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |
FD
20/24K Low-Pro Dual Tandem Flatbed
FD20 Specifications
| Specification | Detail |
|---|---|
| Model | FD20 |
| MSRP | $16,087.40 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Hitch | Pintle Hook (Bumper Pull) |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
FD22 Specifications
| Specification | Detail |
|---|---|
| Model | FD22 |
| MSRP | $16,476.60 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
FD24 Specifications
| Specification | Detail |
|---|---|
| Model | FD24 |
| MSRP | $16,857.40 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
FD25 Specifications
| Specification | Detail |
|---|---|
| Model | FD25 |
| MSRP | $17,052.00 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
FD28 Specifications
| Specification | Detail |
|---|---|
| Model | FD28 |
| MSRP | $17,648.40 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Floor | Treated Pine Wood Floor |
| Jack | Jack, (2) 12K Spring Loaded |
| Low-Profile | Low-Pro Option |
FD30 Specifications
| Specification | Detail |
|---|---|
| Model | FD30 |
| MSRP | $18,029.20 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Floor | Treated Pine Wood Floor |
| Jack | Jack, (2) 12K Spring Loaded |
| Low-Profile | Low-Pro Option |
FD32 Specifications
| Specification | Detail |
|---|---|
| Model | FD32 |
| MSRP | $18,432.40 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Low-Profile | Low-Pro Option |
FD34 Specifications
| Specification | Detail |
|---|---|
| Model | FD34 |
| MSRP | $18,820.20 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Low-Profile | Low-Pro Option |
FD35 Specifications
| Specification | Detail |
|---|---|
| Model | FD35 |
| MSRP | $19,028.80 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Low-Profile | Low-Pro Option |
FD36 Specifications
| Specification | Detail |
|---|---|
| Model | FD36 |
| MSRP | $19,222.00 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Low-Profile | Low-Pro Option |
FD38 Specifications
| Specification | Detail |
|---|---|
| Model | FD38 |
| MSRP | $19,623.80 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Low-Profile | Low-Pro Option |
FD40 Specifications
| Specification | Detail |
|---|---|
| Model | FD40 |
| MSRP | $20,013.00 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Low-Profile | Low-Pro Option |
FD42 Specifications
| Specification | Detail |
|---|---|
| Model | FD42 |
| MSRP | $20,762.00 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Torque Tube | Torque Tube & Bridge Frame |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
FD44 Specifications
| Specification | Detail |
|---|---|
| Model | FD44 |
| MSRP | $21,518.00 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Straight Deck with Slide-in Ramps |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Torque Tube | Torque Tube & Bridge Frame |
| Floor | Treated Pine Wood Floor |
| Low-Profile | Low-Pro Option |
FH
Hydraulic Dovetail Flatbed
FH28 Specifications
| Specification | Detail |
|---|---|
| Model | FH28 |
| MSRP | $23,742.60 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Hydraulic Dove Tail |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
FH30 Specifications
| Specification | Detail |
|---|---|
| Model | FH30 |
| MSRP | $24,413.20 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Hydraulic Dove Tail |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
FH32 Specifications
| Specification | Detail |
|---|---|
| Model | FH32 |
| MSRP | $24,680.60 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Hydraulic Dove Tail |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
FH34 Specifications
| Specification | Detail |
|---|---|
| Model | FH34 |
| MSRP | $24,948.00 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Hydraulic Dove Tail |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
FH36 Specifications
| Specification | Detail |
|---|---|
| Model | FH36 |
| MSRP | $25,216.80 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Hydraulic Dove Tail |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
FH38 Specifications
| Specification | Detail |
|---|---|
| Model | FH38 |
| MSRP | $25,484.20 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Hydraulic Dove Tail |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
FH40 Specifications
| Specification | Detail |
|---|---|
| Model | FH40 |
| MSRP | $25,751.60 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Spring (74-47) |
| Back | Hydraulic Dove Tail |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Suspension | Standard Suspension |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Side | 6" Channel Outer Frame |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |
