TILT TRAILERS
Roll On. Roll Off. Roll Out.
Loading equipment shouldn't slow down the job. X-On tilt trailers are engineered to make every load-up fast, safe, and repeatable — whether you're running a skid steer to a job site across town or trailering heavy machinery across the state. Full-tilt and partial-tilt options in bumper pull, gooseneck, and deckover configurations give you the flexibility to match the trailer to the machine, not the other way around. Every model in the X-On tilt lineup is built to 14K with the same frame quality, weld standards, and powder-coated finish you'll find across everything we make. Less setup. More hauling. That's the point.
THE x-on TILT LINE-UP
From compact models to heavy-duty giants, our trailer line-up is designed to meet the diverse needs of our customers. Each model combines advanced engineering with practical features, ensuring you have the perfect tool for every job.
What's Under Every X-On
The Build Quality Behind the Brand.
Every X-On trailer is engineered from the frame up with the materials, components, and construction standards that hold up under real-world commercial and industrial use — day after day, load after load.
No Ramps. No Setup.
The deck does the work. X-On tilt trailers load faster, safer, and more consistently than ramp setups — so you spend less time on the ground and more time moving.
Full Tilt or Partial — Your Call.
Full-tilt for drive-on simplicity. Partial-tilt for a stationary front section that keeps the load stable in transit. Choose the configuration that matches the machine and the job.
Bumper Pull or Gooseneck.
Bumper pull, gooseneck, and deckover configurations available — so the tilt trailer works with your truck and your hitch setup, not against it.
Detailed Specifications for each model
From compact models to heavy-duty giants, our trailer line-up is designed to meet the diverse needs of our customers. Each model combines advanced engineering with practical features, ensuring you have the perfect tool for every job.

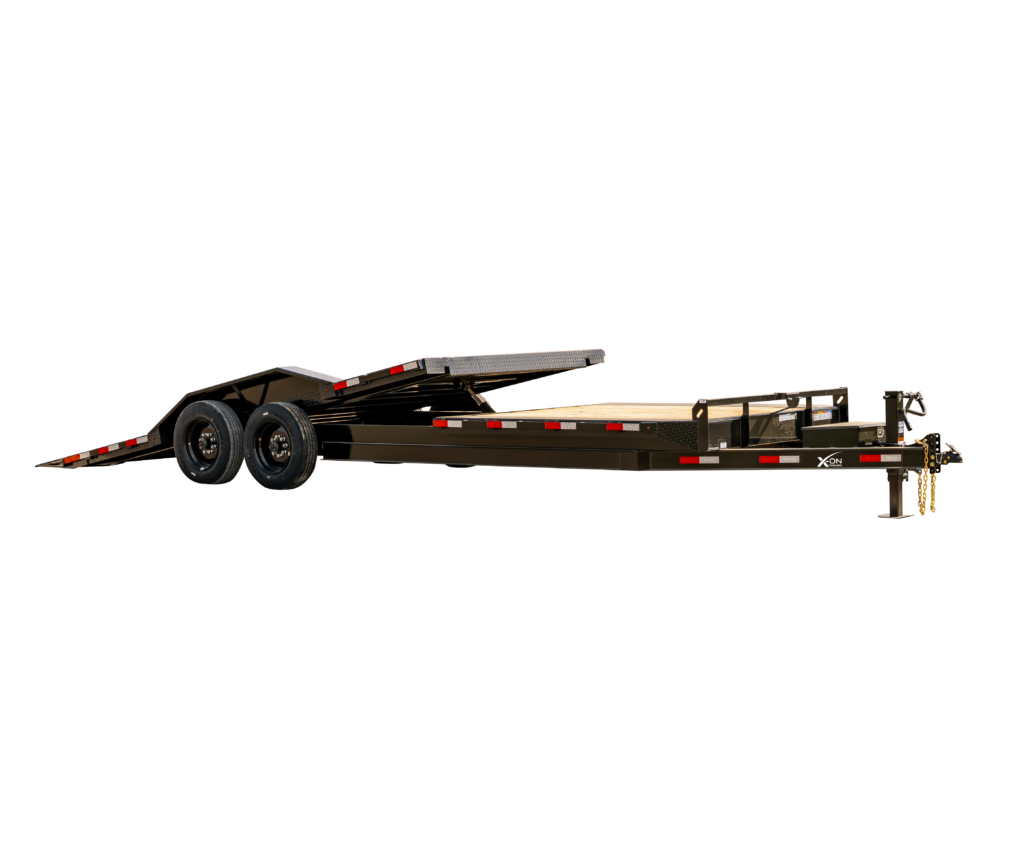

T1
14K Deckover Full Tilt
T124 Specifications
| Specification | Detail |
|---|---|
| Model | T124 |
| MSRP | $13,479.20 |
| Frame | 6" Channel Deck & 8" x 13 lb I-Beam Frame & Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 7K Electric, Torsion (95-80) 22 Up |
| Back | Tilt Deck with Knife Edge |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Wheel | Black Wheels |
| Cross-member | Crossmembers, 3" Channel on 16" Centers |
| Jack | Jack, (2) 12K 2-Speed Spring Loaded |
| Power/Gravity Option | Power UP/Down W/ Pump and Tool Box |
| Fenders | Flush Fender (Diamond Pate Fenders) |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |
| Winch | Winch Plate |

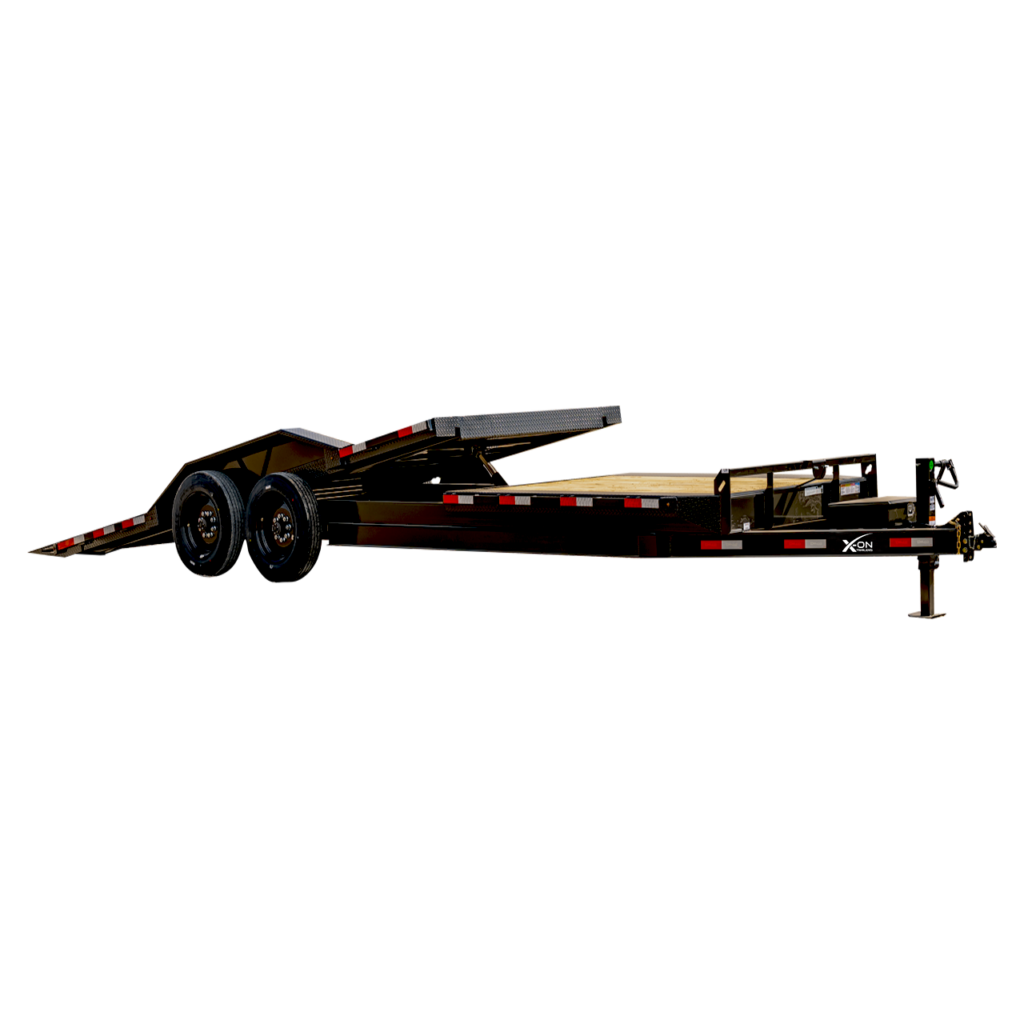

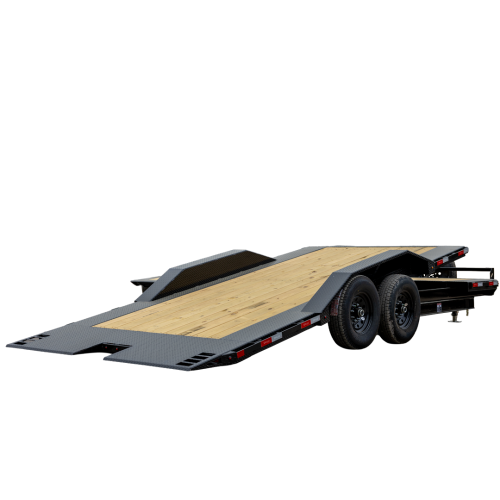

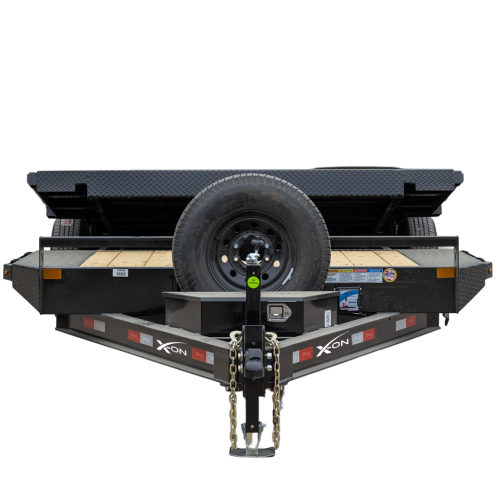

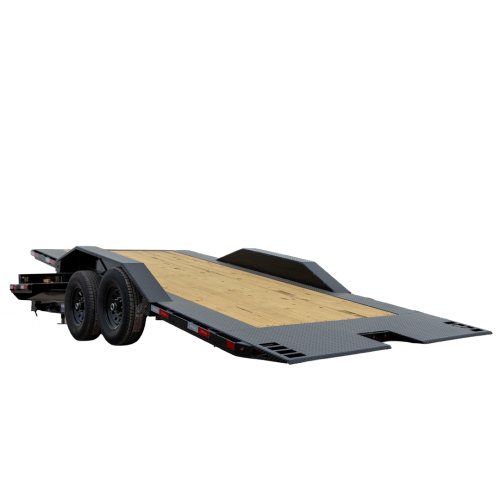

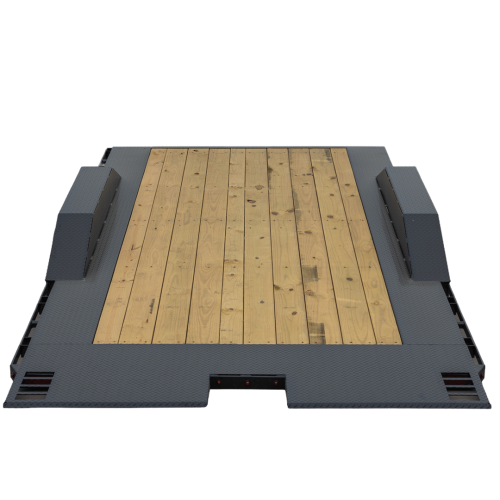

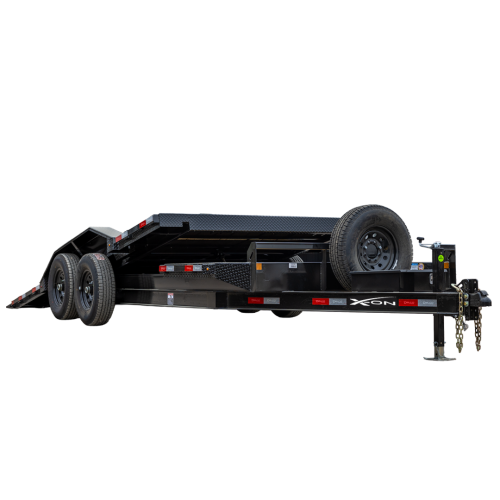

t2
14K Bumper Pull Tilt
T220 Specifications
| Specification | Detail |
|---|---|
| Model | T220 |
| MSRP | $12,105.80 |
| Frame | 6" Channel Frame & 6" x 12 lb I-Beam Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 7K Electric, Torsion (95-80) 22 Up |
| Back | Tilt Deck with Knife Edge |
| Color | Midnight Black (PBS9-00005) |
| Wheel | Black Wheels |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" Channel on 16" Centers |
| Jack | Jack, (1) 7K Drop-Leg |
| Power/Gravity Option | Gravity Up/Down |
| Fenders | Drive Over Fenders (10" C-channel) |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |

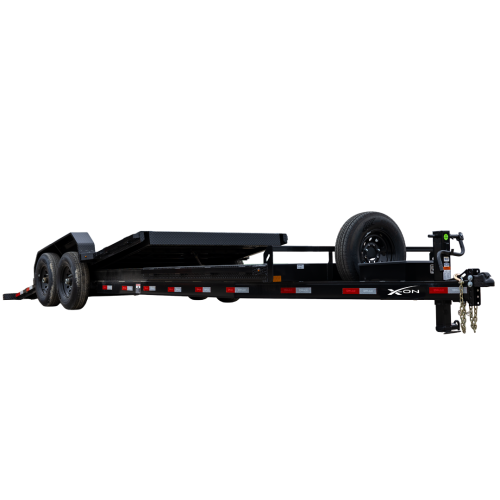

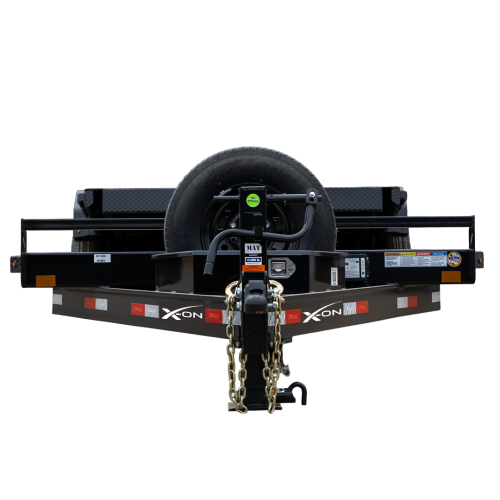

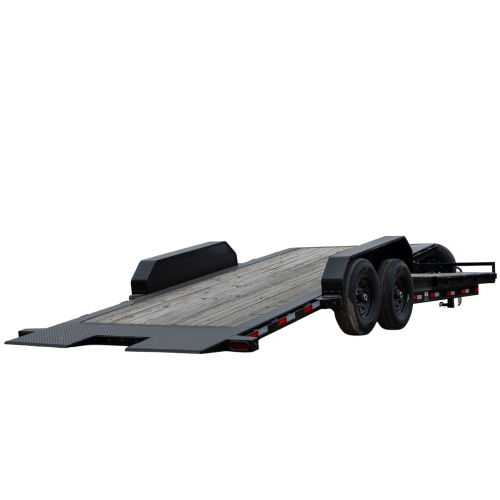

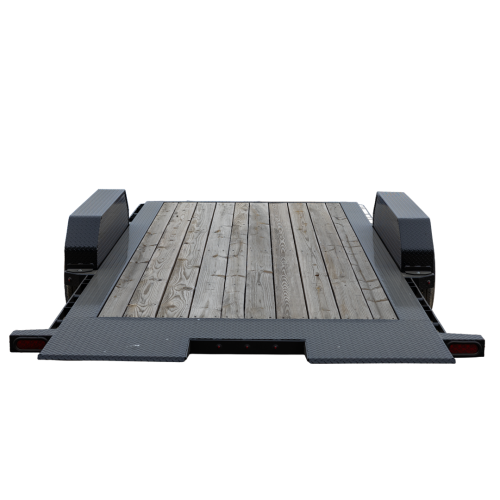

T3
14K Bumper Pull Tilt
T322 Specifications
| Specification | Detail |
|---|---|
| Model | T322 |
| MSRP | $10,782.80 |
| Frame | 6" Channel Frame & Tongue |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 7K Electric, Torsion (95-80) 22 Up |
| Back | Tilt Deck with Knife Edge |
| Color | Midnight Black (PBS9-00005) |
| Wheel | Black Wheels |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" Channel on 16" Centers |
| Jack | Jack, (1) 7K Drop-Leg |
| Power/Gravity Option | Gravity Up/Down |
| Fenders | Diamond Plate Fenders |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |

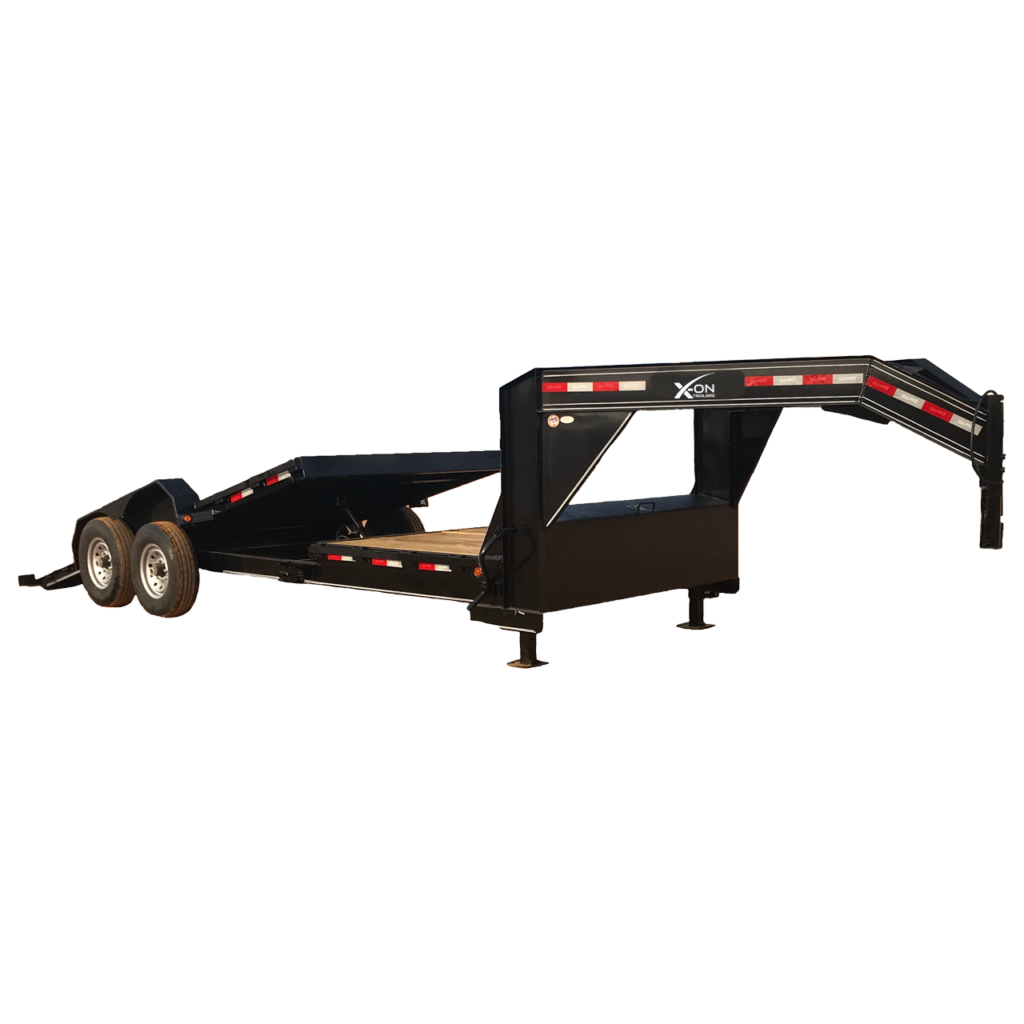

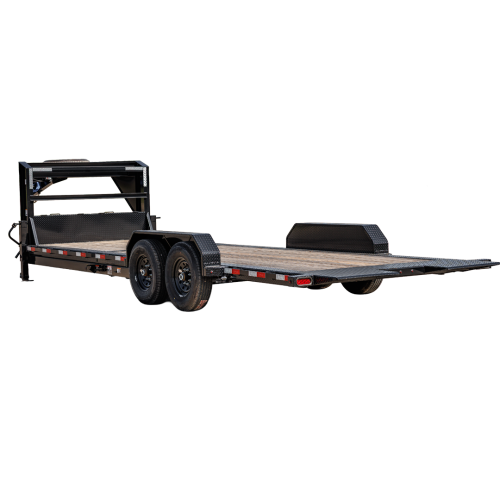

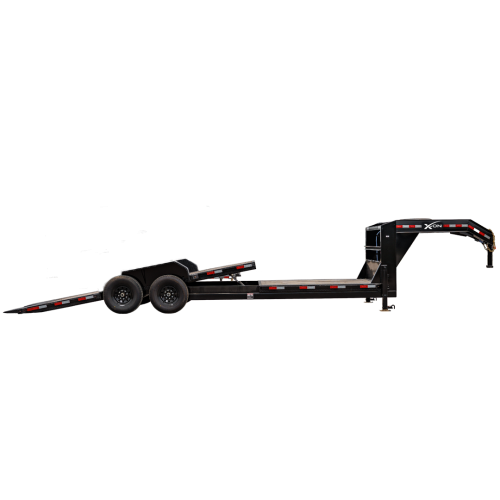

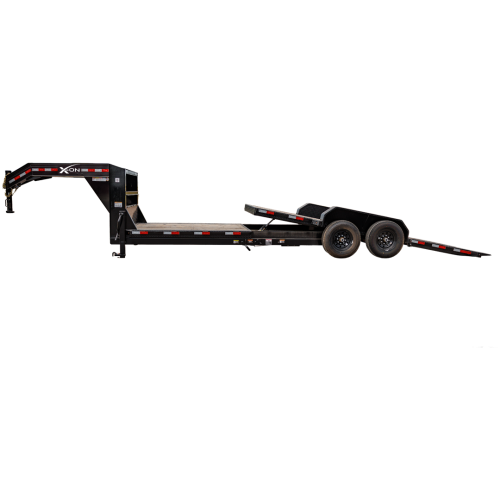

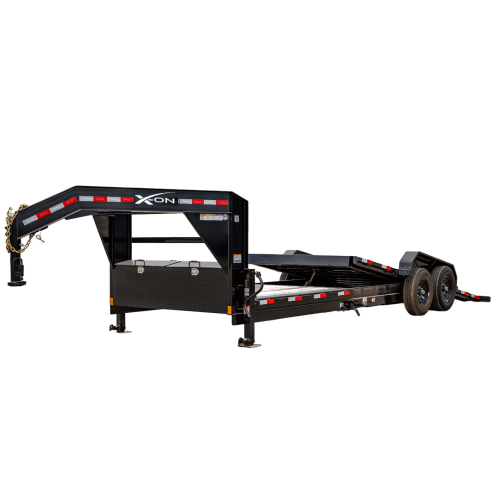

T4
14K Gooseneck Tilt
T422 Specifications
| Specification | Detail |
|---|---|
| Model | T422 |
| MSRP | $13,696.20 |
| Frame | 6" Channel Frame & 6" x 12 lb I-Beam Tongue |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Torsion (95-80) 22 Up |
| Back | Tilt Deck with Knife Edge |
| Color | Midnight Black (PBS9-00005) |
| Wheel | Black Wheels |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" Channel on 16" Centers |
| Jack | Jack, (2) 12K Spring Loaded |
| Power/Gravity Option | Gravity Up/Down |
| Fenders | Drive Over Fenders (10" C-channel) |
| Floor | Treated Pine Wood Floor |
| Spare Tire | Spare Tire Included |
T5
14K Gooseneck Tilt
T522 Specifications
| Specification | Detail |
|---|---|
| Model | T522 |
| MSRP | $12,699.40 |
| Frame | 6" Channel Frame & 10" x 12 lb I-Beam Tongue |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Torsion (95-80) 22 Up |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Back | Tilt Deck with Knife Edge |
| Color | Midnight Black (PBS9-00005) |
| Wheel | Black Wheels |
| Cross-member | Crossmembers, 3" Channel on 16" Centers |
| Jack | Jack, (2) 12K Spring Loaded |
| Power/Gravity Option | Gravity Up/Down |
| Fenders | Diamond Plate Fenders |
| Floor | Treated Pine Wood Floor |
| Spare Tire | Spare Tire Included |
T7
14K Bumper Pull Full Tilt Equipment
T722 Specifications
| Specification | Detail |
|---|---|
| Model | T722 |
| MSRP | $12,490.80 |
| Frame | 6" I-Beam Tongue 6" Channel Frame |
| Hitch | 2 5/16 Adjustable Coupler Bumper Pull |
| Axles | Axle, (2) 7K Electric, Torsion (95-80) 22 Up |
| Back | Tilt Deck with Knife Edge |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Cross-member | Crossmembers, 3" Channel on 16" Centers |
| Jack | Jack, (1) 7K Drop-Leg |
| Power/Gravity Option | Power UP/Down W/ Pump and Tool Box |
| Fenders | Drive Over Fenders (10" C-channel) |
| Floor | Treated Pine Wood Floor |
| Spare Tire | No Spare Tire |

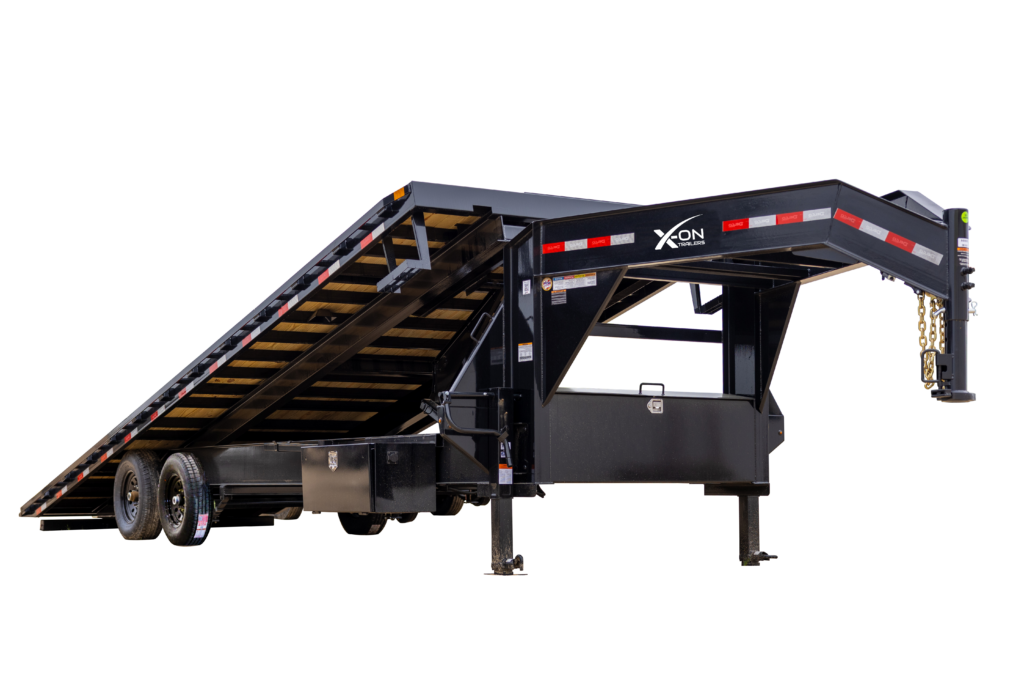

T8
Single-Wheel Full Tilt Flatbed
T830 Specifications
| Specification | Detail |
|---|---|
| Model | T830 |
| MSRP | $19,146.40 |
| Frame | 6" Channel Frame & 10" x 12 lb I-Beam Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Spring (81-64) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Back | Tilt Deck with Knife Edge |
| Color | Midnight Black (PBS9-00005) |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Jack | Jack, (2) 12K Spring Loaded |
| Floor | Treated Pine Wood Floor |
| Torque Tube | Torque Tube & Bridge Frame |

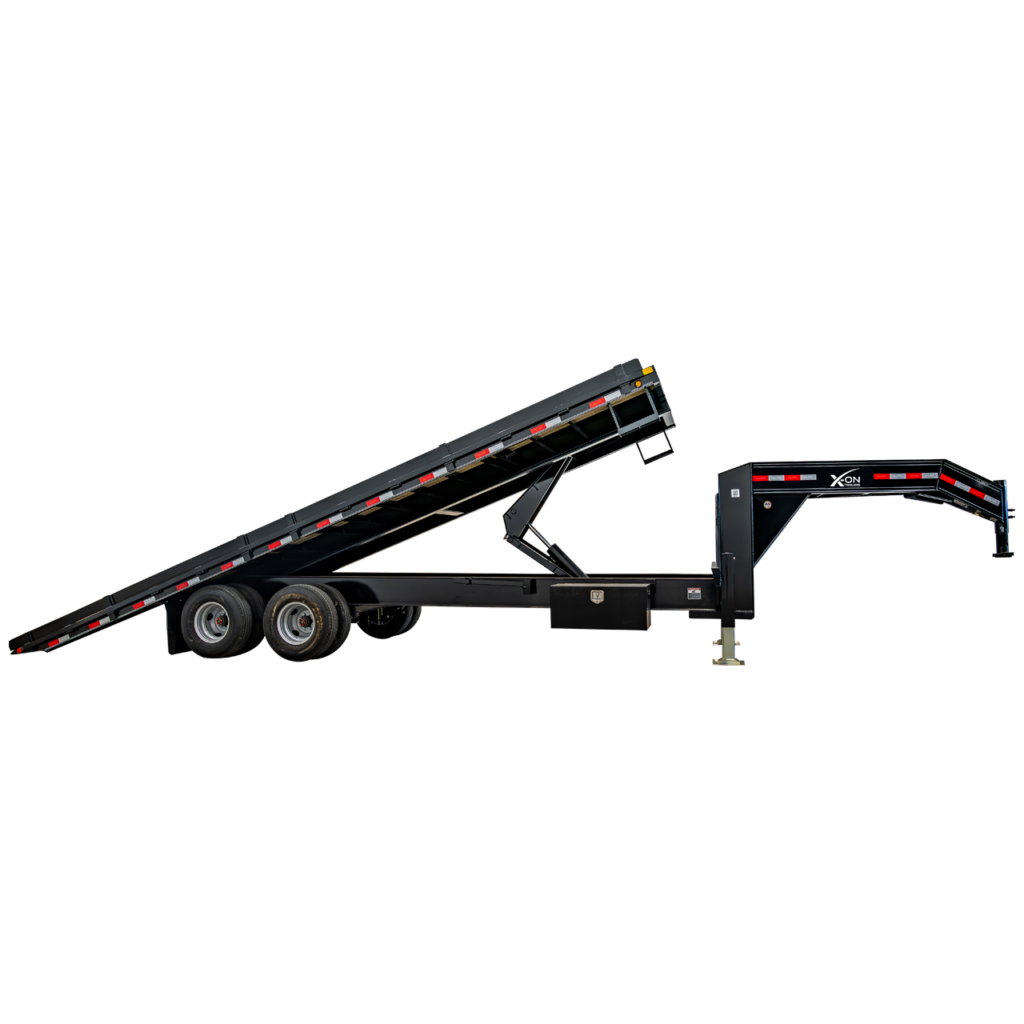

T9
Tandem Dual Full Tilt Flatbed
T934 Specifications
| Specification | Detail |
|---|---|
| Model | T934 |
| MSRP | $27,008.80 |
| Frame | 12" x 19 lb I-Beam Frame & Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 10K Electric, Dual Tandem (74-47) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Back | Tilt Deck with Knife Edge |
| Color | Midnight Black (PBS9-00005) |
| Cross-member | Crossmembers, 3" I-Beam on 16" Centers |
| Jack | Jack, (2) 12K Spring Loaded |
| Side | 6" Channel Outer Frame |
| Floor | Treated Pine Wood Floor |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Frame Bridge | Frame Bridge (per foot) |
| Low-Profile | Low-Pro Option |
