JOB-SITE TRAILERS
On the Clock. On the Job.
Some jobs need more than a flatbed and a prayer. X-On's job-site lineup covers the specialized hauling needs that keep commercial crews and industrial operators moving when standard trailers just won't cut it. Port-a-potty trailers, roll-off bins, commercial bins, and pipe haulers — each one purpose-built for the application that demands a trailer designed around the work, not adapted to it. Every model is built with the same X-On standard: American steel, purpose-driven engineering, and the structural integrity to hold up under commercial and industrial use day after day. Built for the whole job site. Not just the easy parts.
THE x-on JOB-SITE LINE-UP
From compact models to heavy-duty giants, our trailer line-up is designed to meet the diverse needs of our customers. Each model combines advanced engineering with practical features, ensuring you have the perfect tool for every job.
What's Under Every X-On
The Build Quality Behind the Brand.
Every X-On trailer is engineered from the frame up with the materials, components, and construction standards that hold up under real-world commercial and industrial use — day after day, load after load.
Purpose-Built for the Application.
Every trailer in the job-site lineup was designed around a specific task — not adapted from a standard model to fit. Port-a-potty, roll-off bin, commercial bin, pipe hauler — built to do the job right.
Commercial & Industrial Grade.
American steel construction and commercial-grade structural integrity on every model — because job-site trailers work harder, get used more, and take more punishment than anything else on the lot.
4 Specialty Models.
Port-a-Potty (J6) · Roll-Off Bin (RB) · Commercial Bin (KB) · Pipe Hauler (PH) — four distinct tools for four distinct jobs, all built to the same X-On standard.
Detailed Specifications for each model
From compact models to heavy-duty giants, our trailer line-up is designed to meet the diverse needs of our customers. Each model combines advanced engineering with practical features, ensuring you have the perfect tool for every job.

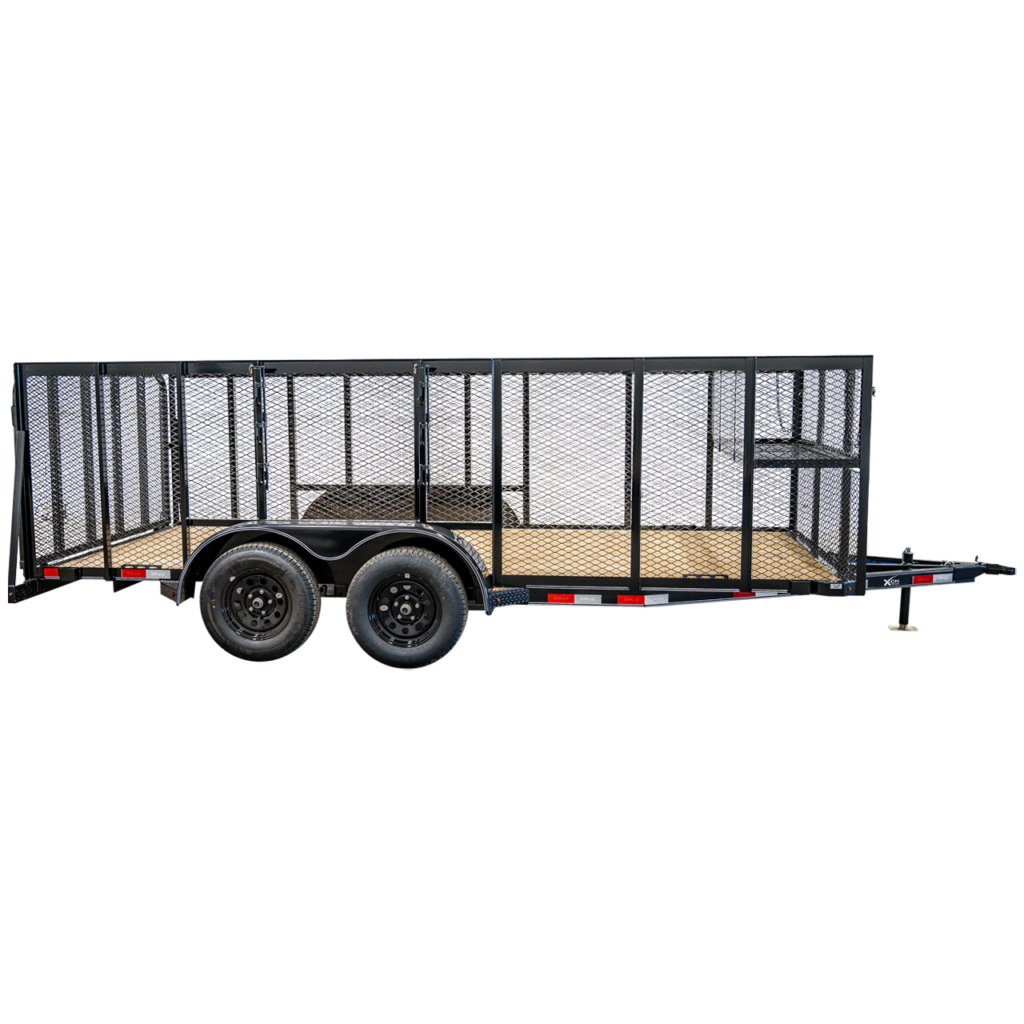

L1
Landscape Trailer
L112 Specifications
| Specification | Detail |
|---|---|
| Model | L112 |
| MSRP | $2,532.60 |
| Frame | 2" x 3" x 3/16" Angle Frame |
| Hitch | 2" A-Frame Coupler |
| Axles | Axle, (1) 3.5K Idler, Spring (73-57) |
| Back | Straight Deck W/4' Gate |
| Back | Straight Deck W/4' Lay-Down Gate |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | 205/75R15 LRC Radial Tires |
| Cross-member | Crossmembers, 2" X 3" X 3/16" Angle on 24" centers |
| Jack | Jack, (1) 2K Swivel Top Wind |
| Side | 48" Expanded Metal Sides |
| Fenders | Smooth Teardrop Fenders |
| Spare Tire | No Spare Tire |
| Floor | Treated Pine Wood Floor |
| Landscape Toolbox | Landscape Toolbox |
| Weed Eater Rack | Weed Eater Rack |

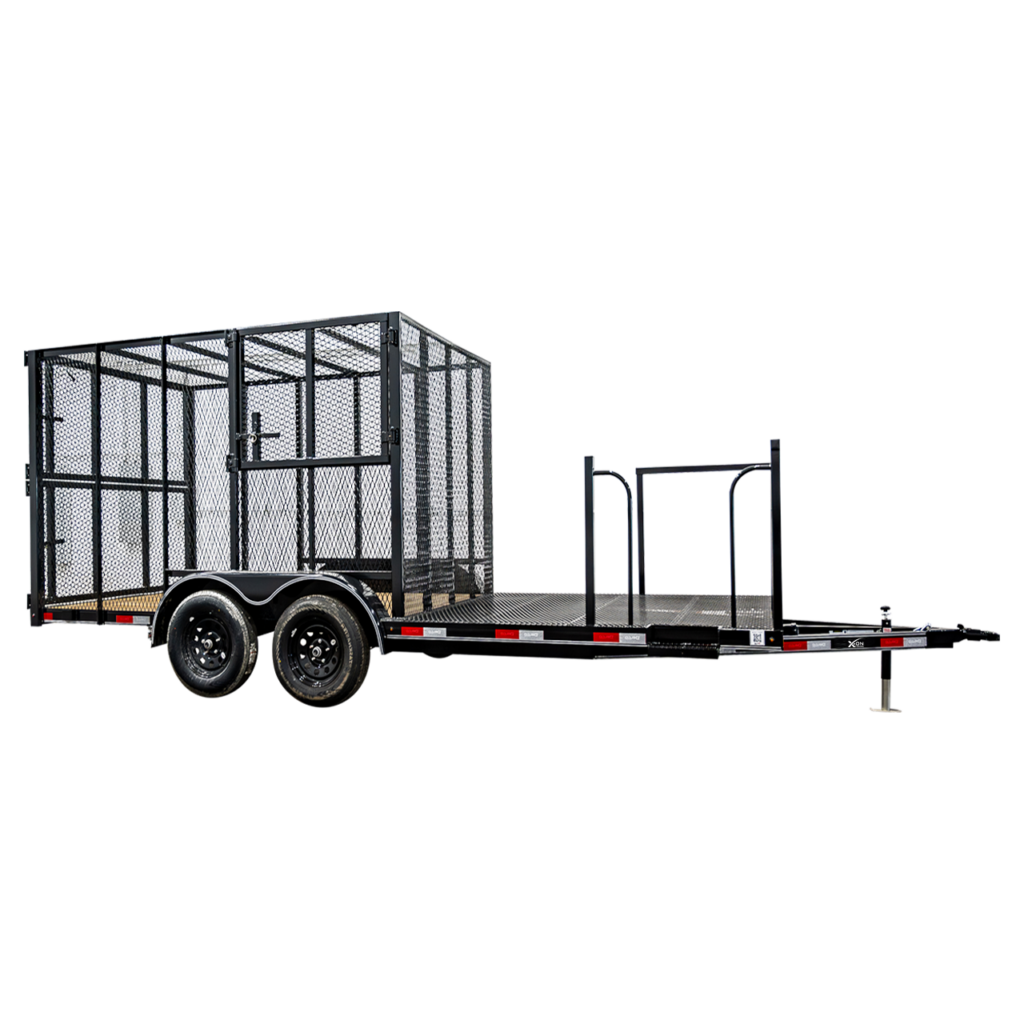

J6
Port-a-Potty Trailer
J618 Specifications
| Specification | Detail |
|---|---|
| Model | J618 |
| MSRP | $7,681.80 |
| Frame | Angle Frame 2”X3”X3/16” & 4" Channel Tongue |
| Hitch | 2" A-Frame Coupler |
| Axles | Axle, (1) 3.5K Idler & (1) 3.5K Brake (95-80) |
| Back | Rear Barn Doors |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | 205/75R15 LRC Radial Tires |
| Additional Support | Porta-Potty Front Deck |
| Cross-member | Crossmembers, 2" X 3" X 3/16" Angle on 24" centers |
| Jack | Jack, (1) 2K Swivel Top Wind |
| Side | 6' Trash Trailer Syle Sides |
| Fenders | Smooth Teardrop Fenders |
| Spare Tire | No Spare Tire |
| Floor | Treated Pine Wood Floor |

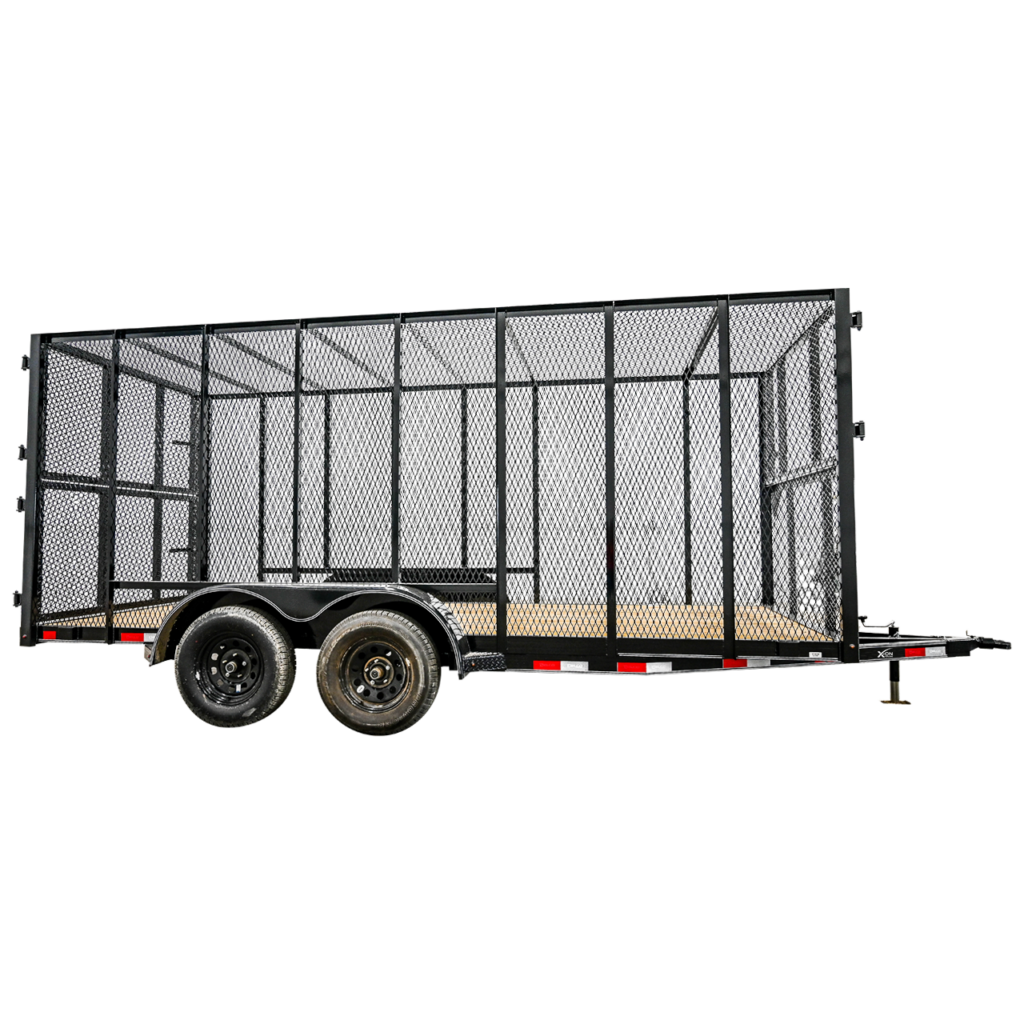

A5
TRASH Trailer
A516 Specifications
| Specification | Detail |
|---|---|
| Model | A516 |
| MSRP | $6,979.00 |
| Frame | 3" x 2" x 3/16" Angle Frame |
| Hitch | 2" A-Frame Coupler |
| Axles | Axle, (1) 3.5K Idler & (1) 3.5K Brake (95-80) |
| Back | Split Door (Horizontal) |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | 205/75R15 LRC Radial Tires |
| Cross-member | Crossmembers, 2" X 3" X 3/16" Angle on 24" centers |
| Jack | Jack, (1) 2K Swivel Top Wind |
| Side | 6' Expanded Metal Sides with 2" x2" Angle Uprights |
| Fenders | Smooth Teardrop Fenders |
| Spare Tire | No Spare Tire |
| Floor | Treated Pine Wood Floor |
| Roof Option | Expanded Metal Roof |
| Side Gate | Double Side Door |

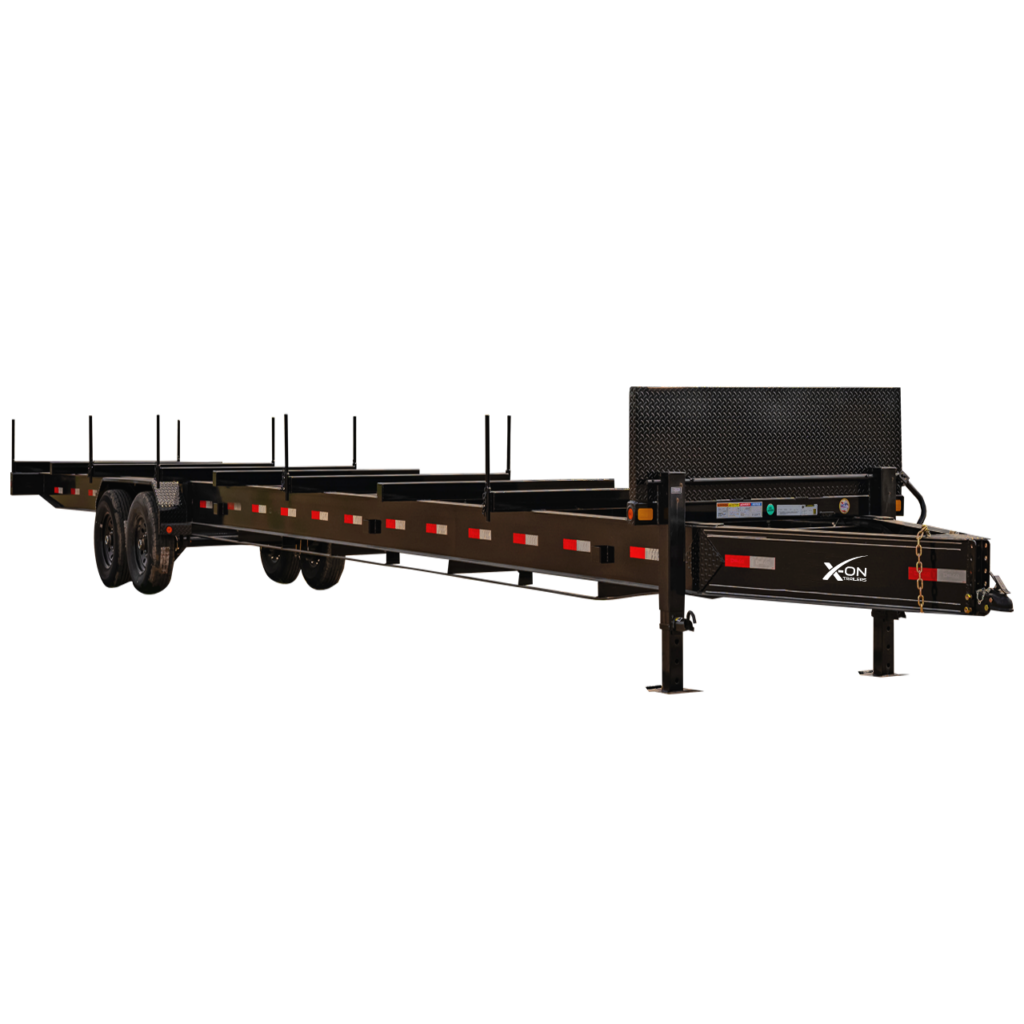

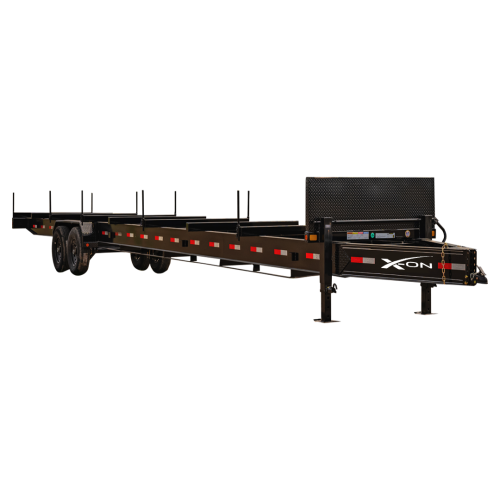

PH
Pipe Hauler
PH40 Specifications
| Specification | Detail |
|---|---|
| Model | PH40 |
| MSRP | $11,757.20 |
| Frame | 12" x 14 lb I-Beam Frame & Neck |
| Hitch | 2 5/16 Ajustable Coupler BUMPER PULL |
| Axles | Axle, (2) 7K Electric, Spring (95-80) |
| Back | Straight Deck (Pipe Haulers) |
| Color | Midnight Black (PBS9-00005) |
| Tire | 235/80R16 LRE Radial 10ply Tires |
| Spare Tire | No Spare Tire |
| Jack | Jack, (2) 12K Spring Loaded |
| Frame Bridge | Frame Bridge |

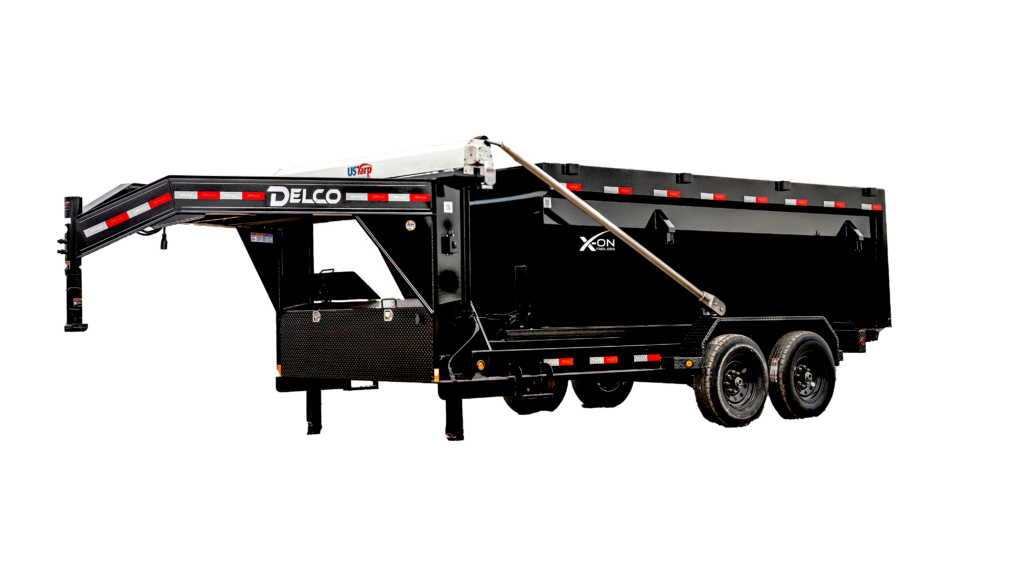

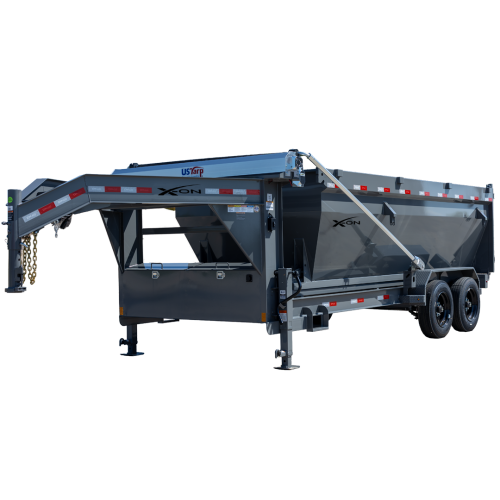

R3
ROLL-OFF DUMP TRAILER
R316 Specifications
| Specification | Detail |
|---|---|
| Model | R316 |
| MSRP | $16,945.60 |
| Frame | 8" x 13 lb I-Beam Frame & 10" x 12 lb Neck |
| Hitch | 2 5/16" 25K Round Gooseneck Coupler |
| Axles | Axle, (2) 7K Electric, Spring (95-80) |
| Back | Tilt Deck with Knife Edge |
| Color | Midnight Black (DBS9-0UK12) |
| Tire | ST235/80R16 LRE Radial 10ply Spare Tire W/ Spare Mount |
| Spare Tire | Spare Tire Included |
| Fenders | Diamond Plate Fenders |
| Jack | Jack, (2) 12K Spring Loaded |
| Tarp Kit | Automatic Flip-Over Tarp Kit |

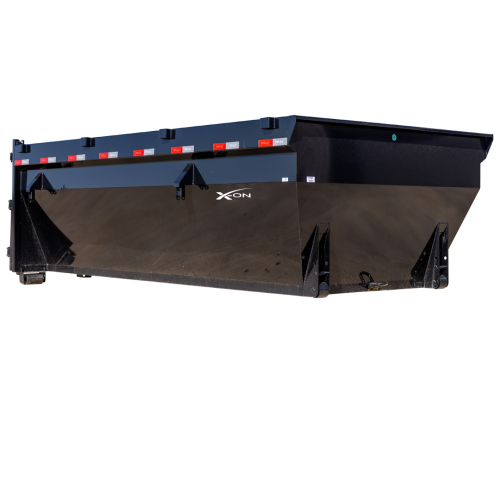

RB
ROLL-OFF BIN
RB16 Specifications
| Specification | Detail |
|---|---|
| Model | RB16 |
| MSRP | $5,573.40 |
| Floor | Base Frame |
| Hitch | No Hitch |
| Axles | No Axles |
| Side | Solid Bin Side; 14 yd³ |
| Color | Midnight Black (PBS9-00005) |

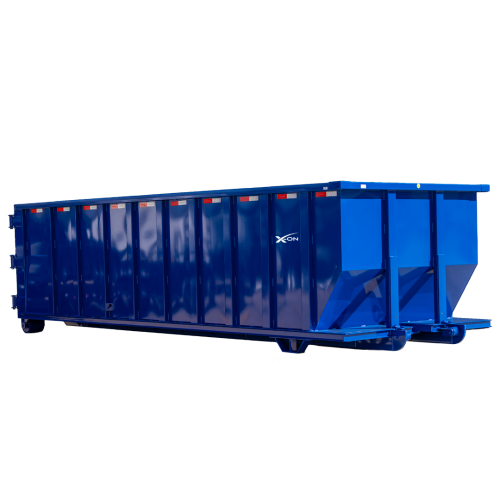

KB
Commercial Bin
KB20 Specifications
| Specification | Detail |
|---|---|
| Model | KB20 |
| MSRP | $8,601.60 |
| Frame | Base Frame |
| Hitch | No Hitch |
| Axles | No Axles |
| Back | Commercial Bin Rear |
| Color | Mountian Blue (DLF8-00K06) |
| Side | Slanted Bin Side, No Gussets; 28 yd |
| Latch | Lock Latch |
